نام محصول:
دریچه کره
نام انگلیسی:

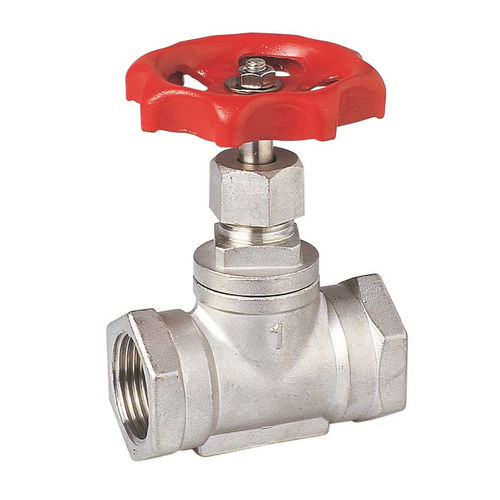

Globe valve 485 series
برند:
SFERACO
مشخصات:
This water distribution equipment can handle a minimum temperature of -20°C and maximum temperature of 180°C. This threaded female BSP cylindrical equipment is made with a S.S. ASTM A351 CF8M body. It can handle a maximum water-pressure of up to 25 bars. It is equipped with a rising rotating stem and handwheel, and PTFE packing. It also has a reduced bore, and can be mounted in different orientations with respect to the flow direction.
SPECIFICATIONS :
• – Respect the flow direction ( mdicated by the arrow )
• – Rismg rotating stem and handwheel
• – PTFE packing
• – S.S. ASTM A351 CF8M body
• – Reduced bore
• – Threaded female BSP cylindrical
USE:
• – For common fluids
• – Min and max Température Ts : – 20°C to + 180°C
• – Max Pressure Ps : 16 bars ( see graph )
• – Do not use for steam
توضیحات:
Type
globe
Operation
with handwheel
Function
distribution
Body$
female-female
Material$
PTFE, stainless steel
DN
Min.: 0.5 inMax.: 2 in
Pressure
16 bar(232.1 psi)
Temperature
Min.: -20 °C(-4 °F)Max.: 180 °C(356 °F)
