نام محصول:
دریچه کره
نام انگلیسی:

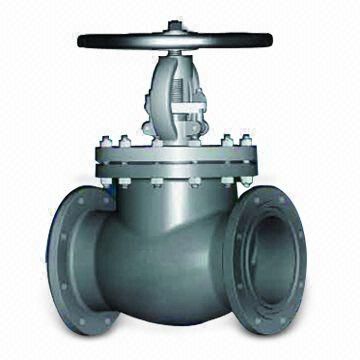

Globe valve LD 002-GL2
برند:
Pipe Valve Flange Factory Landee
مشخصات:
Model:Cast steel globe valves 900lb
•Brief description:
•Series CSGLV-4 are used to cut or connect the pipe media under nominal pressure Class 900lb, working temperature -29 to 800 degrees in industries including oil,
chemistry, pharmaceutical, fertilizer, and power industry. Body materials are carbon steel, alloy steel, stainless steel
Basic design standards:
•Basic design: BS 1873 ANSI B16.34
•Face to face: ANSI B16.10
•Flanges: up to 24-inch ANSI B16.5 from 26-inch MSS SP44 ANSI B16.47
•Butt-weld ends: ANSI B16.25
•Testing: API 598
•Features:
•Outside screw & yoke
•Bolted bonnet
•Screw seat ring up to 6-inch
•Welded seat ring from 8-inch
•Available with gear operator
•Special features according to customer’s requirements
توضیحات:
Type
globe
Operation
with handwheel
Function
regulating
Media
for chemicals
Body$
flange, weld
Applications
for pharmaceutical applications
Material$
alloy, stainless steel, carbon steel, cast steel
Other characteristics
ANSI
DN
Min.: 50 mm(1.969 in)Max.: 900 mm(35.433 in)
Temperature
Min.: -29 °C(-20 °F)Max.: 800 °C(1,472 °F)
