نام محصول:
دریچه کره
نام انگلیسی:

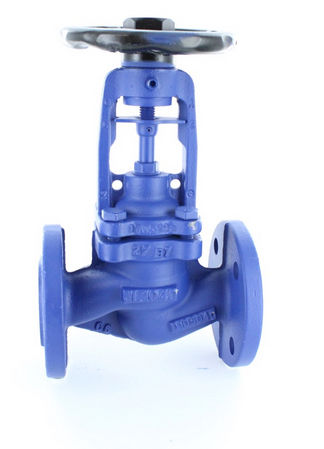

Globe valve AV01
برند:
NieRuf Gmbh
مشخصات:
Flange-Globe valve DN 25 in straight through with bellow flange acc. DIN EN 1092 material grey cast iron DN-JL1040 with Isolation plug
seal: – metal
design: – straight through with bellow
body material: – grey cast iron DN-JL1040
material spindel unit: – SG iron EN-JS1049
handwheel: – steel with cataphoretic-coating (non-rising)
plug: – Isolation plug
length: – acc DIN EN 558 series 1
approval: – EN ISO 15848-1 / TA Luft TÜV-Prüf-Nr: TA 07 2016 C04
installation position: – any position, spindle preferably vertical
product feature: – Stop valve – straight through with flanges and bellows seal additionally with non-rotation lock, flat lubricating nipple and position indicator as standard – CLOSED / OPEN.
توضیحات:
Type
globe
Operation
with handwheel
Function
isolation
Media
for gas
Body$
flange, straight
Applications
for liquids
Material$
stainless steel, SG iron
Other characteristics
ISO, standard, DIN
DN
25 mm(0.984 in)
Pressure
16 bar(232.1 psi)
Temperature
Min.: 0 °C(32 °F)Max.: 300 °C(572 °F)
