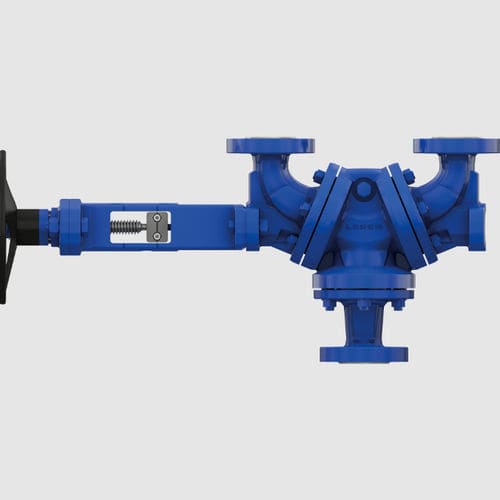

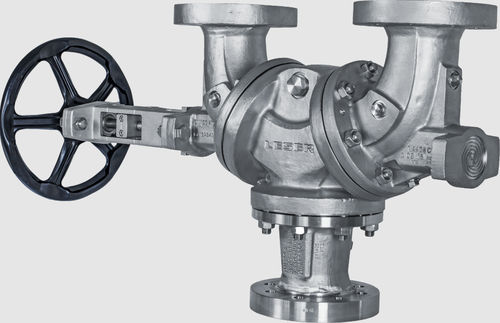

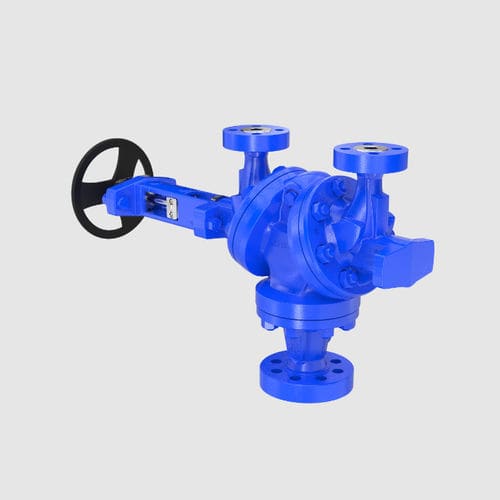

نام محصول:
دریچه کره
نام انگلیسی:

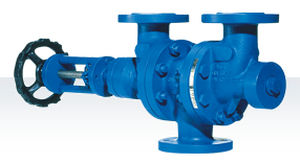

Globe valve 320 Flow
برند:
LESER GmbH & Co. KG
مشخصات:
Applications & Industries
Energy
The optimal solution for:
Processes that cannot be stopped
A high level of plant availability
High required mass flows
Connections ASME B16.5
NPS 1 to NPS 12
Flange class Inlet DIN EN 1092
PN 10 – PN 250
Flange class Inlet ASME B16.5
Class 150 – Class 1500
Body material
1.0619, 1.4408 | WCB/WCC, LCB, CF8M
Seat gasket
Metallic
توضیحات:
Type
globe
Operation
with handwheel
Function
changeover
Media
for oil, for chemicals, for gas
Applications
for the chemical industry, flange, for oil industry applications, for the gas industry
Material$
stainless steel, carbon steel
Other characteristics
DIN
DN
Min.: 25 mm(0.984 in)Max.: 300 mm(11.811 in)
Pressure
250 bar(3,625.9 psi)
Temperature
Min.: -273 °C(-459 °F)Max.: 450 °C(842 °F)
