نام محصول:
دریچه کره
نام انگلیسی:

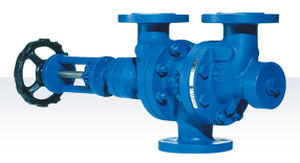

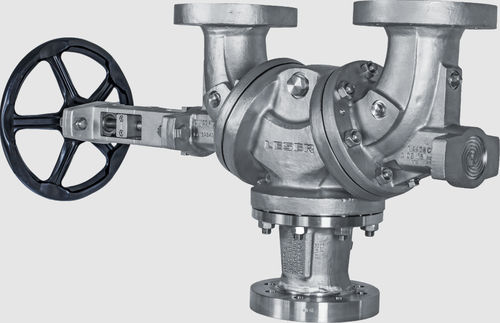

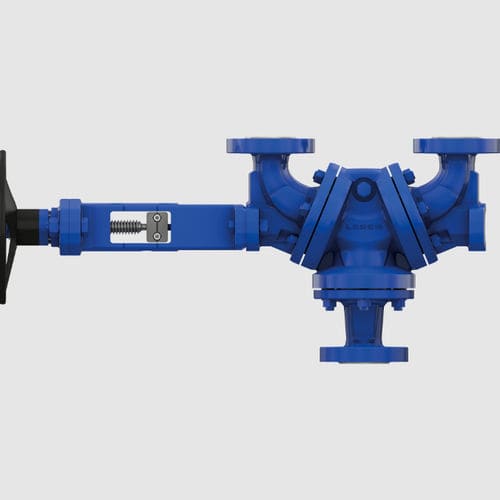

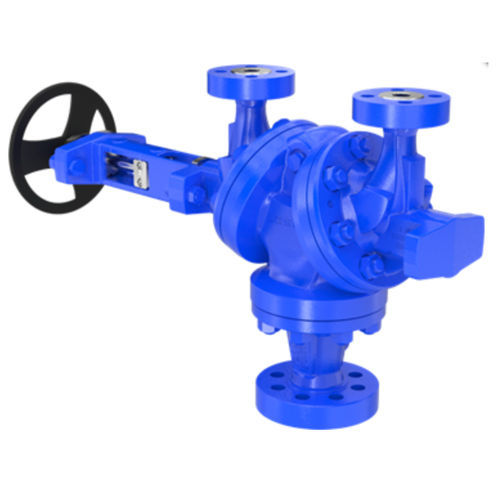

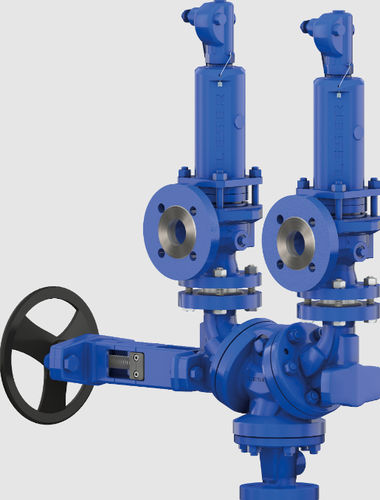

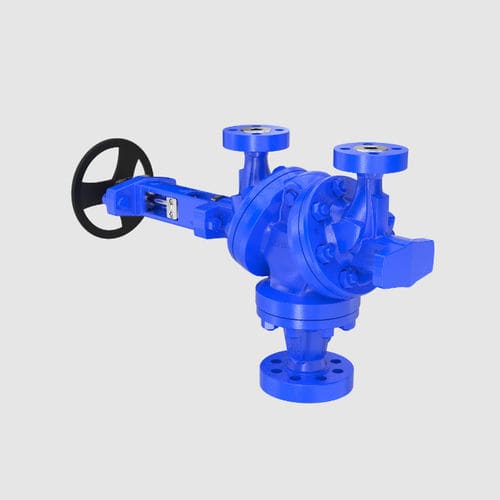

Globe valve 320 Flow
برند:
LESER GmbH & Co. KG
مشخصات:
Applications & Industries
Energy
The optimal solution for:
Processes that cannot be stopped
A high level of plant availability
High required mass flows
Connections ASME B16.5
NPS 1 to NPS 12
Flange class Inlet DIN EN 1092
PN 10 – PN 250
Flange class Inlet ASME B16.5
Class 150 – Class 1500
Body material
1.0619, 1.4408 | WCB/WCC, LCB, CF8M
Seat gasket
Metallic
توضیحات:
Type
globe
Operation
with handwheel
Function
changeover
Media
for oil, for chemicals, for gas
Body
stainless steel, carbon steel
Applications
for the chemical industry, flange, for oil industry applications, for the gas industry
Other characteristics
DIN
DN
Min.: 25 mm(0.984 in)Max.: 300 mm(11.811 in)
Pressure
250 bar(3,625.9 psi)
Temperature
Min.: -273 °C(-459 °F)Max.: 450 °C(842 °F)
