نام محصول:
دریچه کره
نام انگلیسی:
Globe valve 417 series
برند:
Goetze KG
مشخصات:

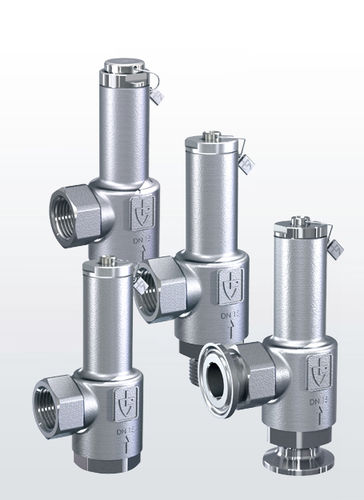

If the 617 series made of gunmetal and brass cannot be used due to an aggressive medium or an aggressive environment, the new 417 series made of highly corrosion resistant stainless steel provides a solution. The sealed and gas-tight design covers an even wider application range. The valves can be conveniently adjusted or aligned using the external adjustment, which means that perfect alignment to the operating conditions of the system is possible. They can, however, also be set and sealed at the factory.
For the protection of:
– pumps against overloading in closed circuits for neutral / non-neutral, non-sticking liquids
For the control of:
– systems under pressure for neutral / non-neutral gases and vapours and – depending on the sealing material – also for steam
– chemical plants, biogas plants
– desalination plants
– mechanical engineering and process equipment construction
– shipbuilding industry and marine equipment
– industrial applications
– secondary areas in the food-, beverage-, pharmaceutical- and cosmetics-industries
توضیحات:
Type
globe
Function
flow control, pressure-control
Media
for air, for steam, for gas
Body
threaded, right-angle, stainless steel
Applications
chemical, for pump
Other characteristics
corrosion-resistant
DN
Max.: 2 inMin.: 0.375 in
Pressure
Max.: 20 bar(290.1 psi)Min.: 0.2 bar(2.9 psi)
Temperature
Max.: 225 °C(437 °F)Min.: -60 °C(-76 °F)
