نام محصول:
دریچه کره
نام انگلیسی:

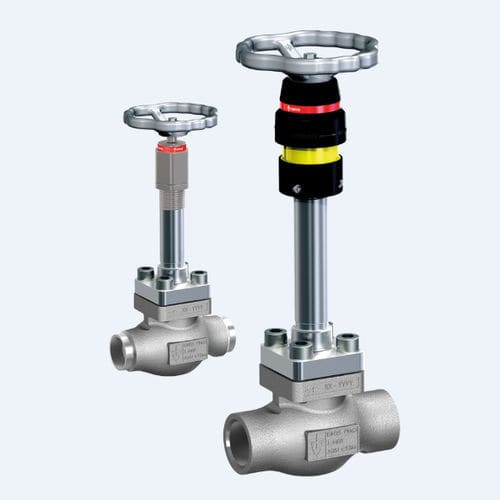

Globe valve 2140
برند:
Goetze KG Armaturen
مشخصات:
The main function of the 2140 shut-off valve is the controlled opening and closing of pipeline sections via the valve seat integrated in the body.
Due to the use of high-quality materials, the fitting can be used for cryogenic operation at temperatures down to-196°C. The shut-off valves are approved according to DIN EN 1626.
The series is available in the nominal widths DN10 – DN50 and can be designed with connection options for welding ends and welding sockets. The manual valve actuator is operated via an ergonomically shaped handwheel, the open/closed position can be seen at all times via a visual position indicator.
The valve upper section can be configured with three different actuator lengths depending on the application and operating environment.
N2 for food/pharmaceutical applications
O2 for medical supply systems
CO2 for food / industrial applications
LAr for welding
Cooling plants
توضیحات:
Type
globe
Operation
with handwheel
Function
shut-off
Body$
straight
Applications
for industrial applications, for food applications, for pharmaceutical applications, for medical applications
Material$
stainless steel
DN
Min.: 10 mm(0.394 in)Max.: 50 mm(1.969 in)
Pressure
63 psi
Temperature
Min.: -328 °F(-200 °C)Max.: 392 °F(200 °C)
