نام محصول:
دریچه کره
نام انگلیسی:

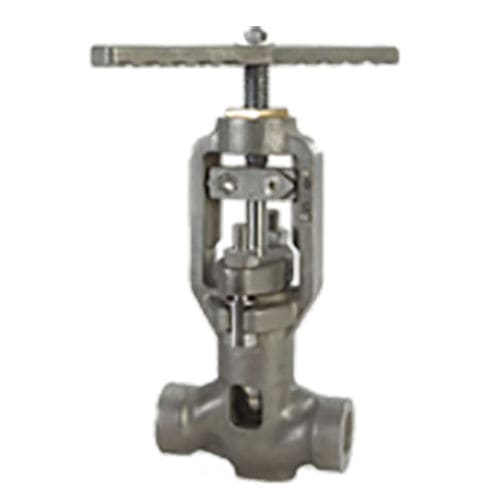

Globe valve 1878
برند:
FLOWSERVE
مشخصات:
The 1878 T-Pattern Globe Valve is a rugged, one-piece, low-profile globe valve constructed with investment cast body/yoke assembly using the latest investment casting techniques.
Standards compliance assured by a design that meets ASME Section III, Class 1, 2, and 3 design codes
Lower maintenance time via a lower, non-rotating stem with T-head design that enables ease of disc removal and replacement
Increased durability via a one-piece low profile, investment cast body/yoke assembly that results in smooth flow passages
Functional qualifications per pressure class 1878 (intermediate) requirements
Broad application versatility provided by a choice of three disc styles, including: quick-open, parabolic and cage type discs
ASME B16.34
ASME Section III
Basic (Organic & Inorganic)
Specialty (Fine & Consumer)
Downstream Processing
Power
Combined Cycle
Conventional Steam
Geothermal
توضیحات:
Type
globe
Operation
manual, pneumatically-operated
Media
for oil, for chemicals, for gas
Body$
1-piece
Applications
for the chemical industry, for oil industry applications, for the gas industry, for nuclear applications
Material$
cast
Other characteristics
standard, rugged, with bellows seal
DN
Min.: 15 mm(0.591 in)Max.: 50 mm(1.969 in)
Pressure
Min.: 25 bar(362.6 psi)Max.: 325 bar(4,713.7 psi)
