نام محصول:
دریچه کره

نام انگلیسی:
Globe valve 2106

برند:
BÜRKERT FLUID CONTROL SYSTEMS

مشخصات:

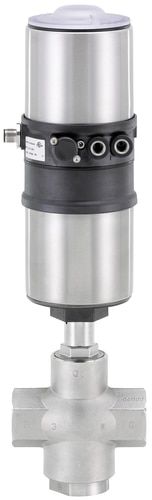

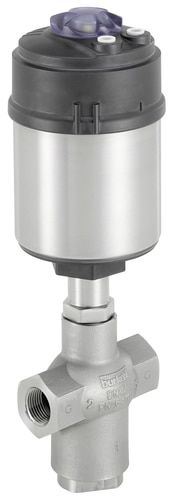

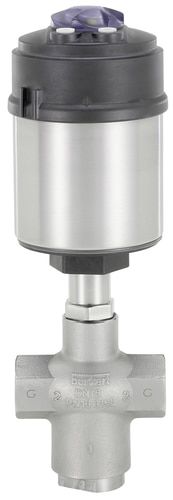

The Bürkert 3/2 way seat valve, Type 2106, consists of a pneumatically operated ELEMENT actuator and a 3 way stainless steel valve body. Interchanging of pressure and service ports enables different fluidic circuit functions, such as the mixing or distributing of mediums. The flow-optimized valve body of Type 2106 allows excellent flow rates. The tried and tested self-adjusting gland secures a high level of tightness and thus ensures reliable operation over years. The design of the 3/2 way valve, Type 2106, offers all the advantages of a modern, decentralized automation: The directly connected control head and actuator provide a compact and smooth design, integrated pneumatic lines, protection class IP65/67, NEMA Type 4X, and a high chemical resistance. An optionally integrated fieldbus interface through to an explosion-proof automation units are further advantages of the 3 way shut-off valve. For the user, the compact Type 2106 is thus often an economical alternative to two single valves.

For mixing or distributing of mediums
Decentralized automation with control head
Flow optimized body in stainless steel
Long service life and maintenance-free operation
Control Head is connected w/o external tubing

توضیحات:
Type
globe

Operation
pneumatically-operated

Function
mixing, shut-off, regulating

Media
for water, for oil, for fuel, for gas

Body$
threaded, seat, compact, chemical-resistant, explosion-proof, IP65, IP67

Material$
stainless steel

Number of channels
3/2-way

DN
Min.: 15 mm(0.591 in)Max.: 50 mm(1.969 in)

Pressure
Min.: 0 bar(0 psi)Max.: 16 bar(232.1 psi)

Temperature
Min.: -10 °C(14 °F)Max.: 185 °C(365 °F)

Flow rate
Min.: 5 m³/h(176.57 ft³/h)Max.: 51 m³/h(1,801.05 ft³/h)
