نام محصول:
دریچه کره
نام انگلیسی:

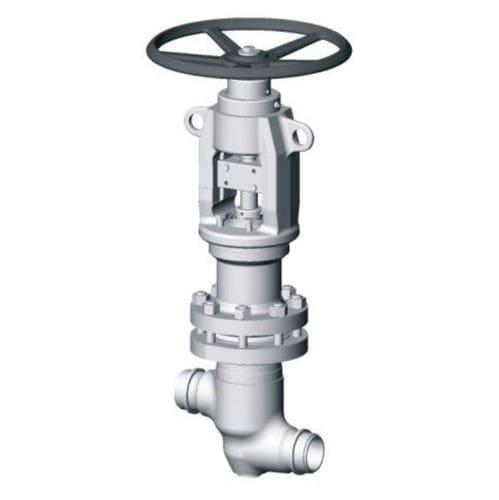

Globe valve A1 series
برند:
ARAKO spol. s r.o
مشخصات:
– shut-off globe valve with bellows (A10) and regulating globe valve with bellows (A11 rough – regulation)
– forged body (lifetime up to 60 years)
– non-cobalt overlay
– threaded yoke
– multi-layer bellows with long lifetime (up to 3000 cycles)
– stem sealing by bellow and emergency graphite packing
– position indicator in standard (electronic on request)
Design options:
– straight way body (DN 10–32)
– Y-pattern body (DN 50)
– quick-acting design with electric actuator
Material
stainless steel 08Ch18N10T, carbon steel 12 020.1
Connection
butt welding ends
Operating
handwheel, electric actuator, gearbox, remote control (hinge)
توضیحات:
Type
globe
Operation
with handwheel, electrically-actuated
Function
shut-off, regulating
Body
straight, stainless steel, carbon steel, graphite
Applications
for nuclear applications
Other characteristics
standard, emergency, remote control
DN
Max.: 150 mm(5.906 in)Min.: 10 mm(0.394 in)
Pressure
Max.: 250 bar(3,625.9 psi)Min.: 160 bar(2,320.6 psi)
Temperature
350 °C(662 °F)
