نام محصول:
دریچه کاهش فشار
نام انگلیسی:

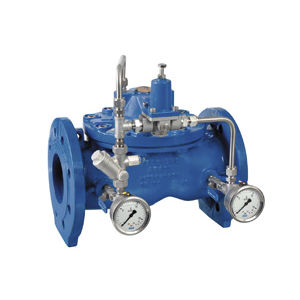

Pressure-reducing valve HM-RP
برند:
Tecnidro
مشخصات:
PRESSURE REDUCING VALVE
The valve reduces high upstream pressure to a pre-set lower and constant downstream pressure level, regardless of fluctuating flow or varying upstream pressure. A hydraulic regulating pilot drives the valve.
The pilot is able to detect upstream pressure values and regulates closing steps of the valve until the pre-set pressure value is restored.
TYPICAL APPLICATIONS
Pressure balancing in distribution networks that serve large areas or with high-level variations.
توضیحات:
Type
diaphragm
Operation
hydraulically-operated
Function
pressure-reducing
Media
for water
Applications
for industrial applications, industrial, for the food industry, for water, for water systems
Associated function
balancing, reducing
Other characteristics
ISO, ANSI, DIN, automatic, motor-driven
DN
Max.: 600 mm(23.622 in)Min.: 50 mm(1.969 in)
Pressure
25 bar(362.6 psi)
Flow rate
Max.: 5,400 m³/h(190,699.2 ft³/h)Min.: 16 m³/h(565.03 ft³/h)
