نام محصول:
دریچه چک پوپت
نام انگلیسی:

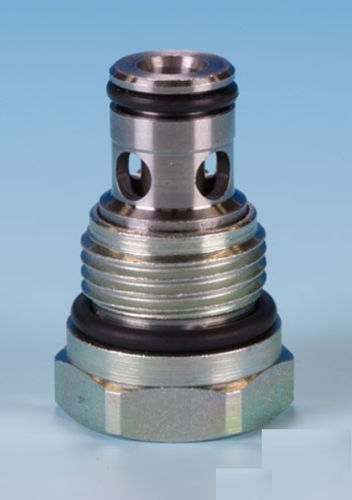

Poppet check valve CVC5.S08
برند:
VIS HYDRAULICS SRL
مشخصات:

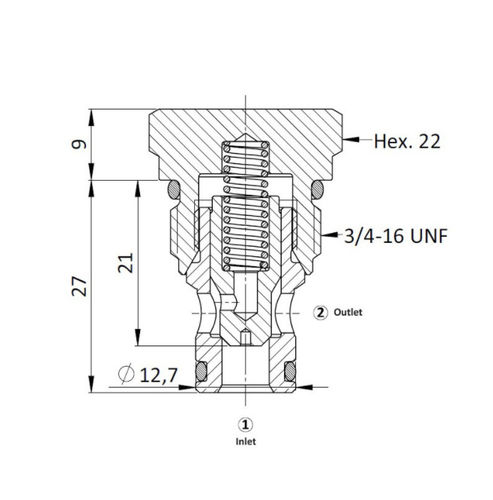

A screw-in, cartridge style, direct acting, poppet type check valve.
Main use is as a blocking or load-holding device.
The CVC5.S08 allows flow passage from port 1 to 2: the cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at port 1 to open to 2
The flow is blocked in the opposite direction (2 to 1).
Outlet
Technical Features
All external surfaces are zinc plated and corrosion-proof.
All valve parts are made of high strength steel. Poppet is hardened
and ground to guarantee minimal wear and to extend service life.
Compact size.
Optional bias springs for back-pressure application flexibility.

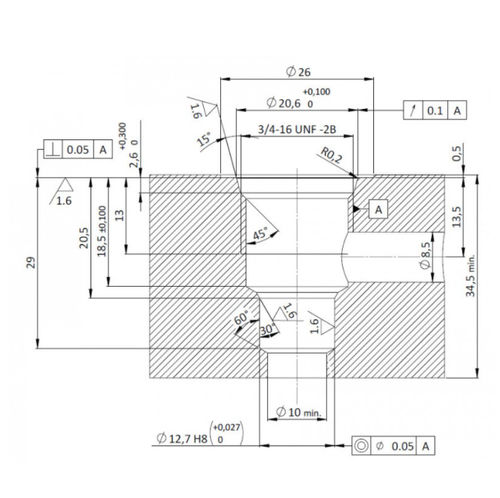

Industry common cavity.
fluids – Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt
orientation – no restrictions
installation torque – 40-45 Nm
seal kit code – SK.030
weight – 0.060 kg
توضیحات:
Type
poppet, cartridge
Body
screw-in
Material
steel
Other characteristics
compact
DN
12.7 mm(0.5 in)
Pressure
420 bar(6,091.6 psi)
Temperature
Max.: 110 °C(230 °F)Min.: -30 °C(-22 °F)
Flow rate
50 l/min(13.21 us gal/min)
