نام محصول:

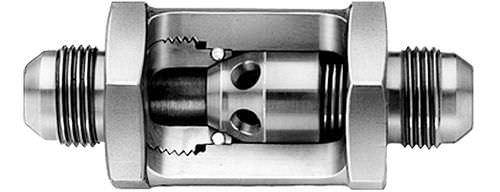

دریچه چک پوپت
نام انگلیسی:
Poppet check valve
برند:
KEPNER
مشخصات:
These inline valves allow free flow in only one direction, prevent backflow, and meet the industry’s need for higher operating pressures. They also are used for relief and by-pass functions; however, they should not be used as safety relief valves. Kepner’s Flexible Seal Seat™ combines metal-to-metal contact with a resilient seal seat ensuring bubble-tight shutoff of liquid or gas. This is an ideal choice for applications that require positive leak-tight sealing and long service life at pressures to 6000 PSI. Standard and specialty valves handle a wide variety of applications.
Features and Benefits:
Flexible Seal Seat™ for zero leak (bubble-tight) sealing to 6000 PSI
O-Ring seal positively secured
Non-pressurized threads
Poppet stop inside valve body prevents spring from bottoming out
Generous flow passages allow full flow with minimal pressure drop
توضیحات:
Type
poppet
Body
threaded
Applications
high-pressure
Other characteristics
spring
Pressure
414 bar(6,004.6 psi)
Temperature
Min.: -184 °C(-299 °F)Max.: 232 °C(450 °F)
