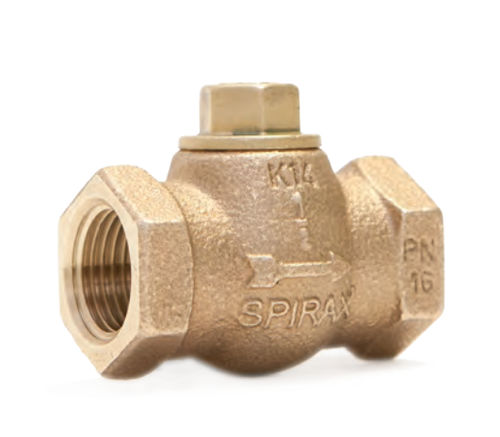

دریچه چک توپ – Spirax Sarco – Ball check valve LCV series

نام محصول:
دریچه چک توپ

نام انگلیسی:
Ball check valve LCV series

برند:
Spirax Sarco

مشخصات:
The Spirax Sarco LCV range offers robust solutionsfor prevention of reverse flow with options for use inhorizontal and vertical pipelines. With only a singlemoving part the LCV design is virtually maintenance free.The majority of the valves within the LCV range also offera replaceable seat arrangement for simple and quickmaintenance. This range is also ideal for low differentialpressure applications.

How the lift check valve works
The flow of fluid into the valve lifts the cone off its seat,exposing the outlet and allowing fluid to pass through.The cone returns to its seat when the flow ceases.

توضیحات:
Type
ball

Body
double-flange

Applications
for pipelines

Material
stainless steel, cast iron, bronze, carbon steel

DN
Min.: 15 mm(0.591 in)Max.: 100 mm(3.937 in)

Pressure
16 bar, 40 bar(232.1 psi, 580.2 psi)

Temperature
Min.: -10 °C(14 °F)Max.: 400 °C(752 °F)
