نام محصول:
دریچه چک توپ
نام انگلیسی:

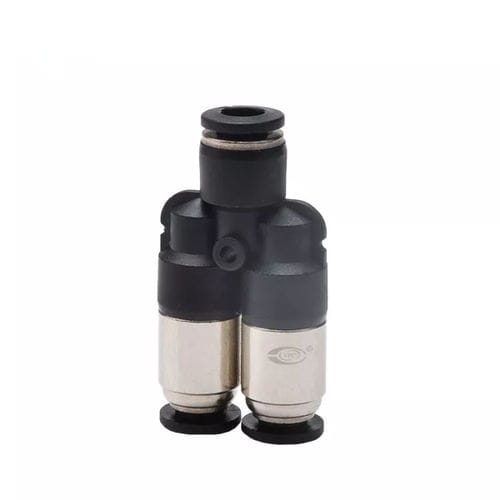

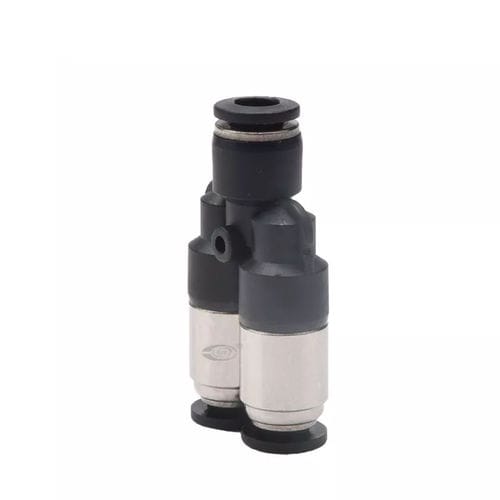

Ball check valve VCVPY Series
برند:
Ningbo VPC Pneumatic Co., Ltd.
مشخصات:
1. Check valves permit airflow in one direction;
2. Used for maintaining the output pressure at a constant level.
Product Features
1. The check valves permit airflow in one direction but stops in the reverse direction.
2. The check valves work at the pressure of 0.1kgf/c㎡, keep 1.42 PSI in vacuum and connect at a low pressure.
3.Nickel-Plated brass body ensures anti-corrosion and anti-contamination.
4. Fittings are equipped with a Gasket, O-ring and Teflon-treatment on the thread.
توضیحات:
Type
ball
Fluid
for air
Body
Y, push-in
Material
nickel-plated brass
Other characteristics
anti-corrosion, pneumatic
DN
4 mm, 6 mm, 8 mm, 10 mm, 12 mm(0.157 in, 0.236 in, 0.315 in, 0.394 in, 0.472 in)
Pressure
Max.: 11,251 mm/HgMin.: -750 mm/Hg
Temperature
Max.: 60 °C(140 °F)Min.: 0 °C(32 °F)
