نام محصول:

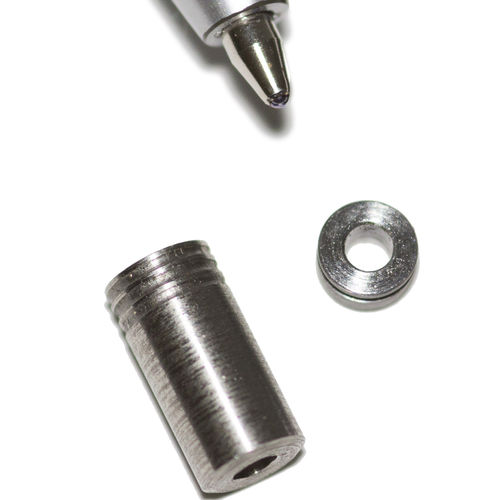

دریچه چک توپ
نام انگلیسی:
Ball check valve ICV02 series
برند:
Inosol
مشخصات:
Miniature Check Valve
– Individual positioning
– Simple mounting hole
– Valve combinations possible
– For hydraulic and pneumatic applications
– Working pressure up to 300 bar
– Space saving mounting
– Usable for different media
As insert valve for Bore diameter 5
While pressure application at port “A” the cylinder moves out.
The displaced volume will be supplied through the throttle screw by passing
the non-return valve through the bore of channel “B”.
For the retraction of the cylinder, now the port “B” is setted with pressure.
The piston drives back with a higher speed.
If this restriction is applied to several cylinders, you can sync them in their
movement and throttle the tension in their extension speed
توضیحات:
Type
ball
Body
miniature
Other characteristics
hydraulic, pneumatic
Pressure
Min.: 0 bar(0 psi)Max.: 300 bar(4,351.1 psi)
