نام محصول:
دریچه چک توپ
نام انگلیسی:

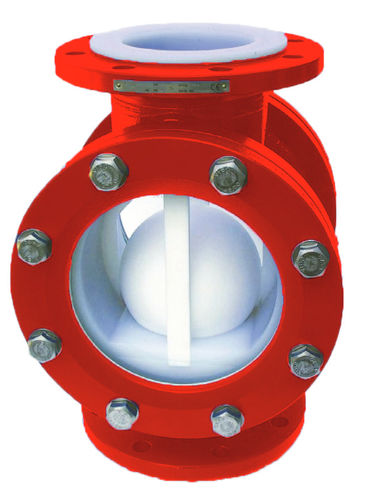

Ball check valve SGCVB
برند:
GFT German Fluorolined Technik GmbH
مشخصات:
With or without sight glass
Large optional lining materials
Swing Check Valve design available

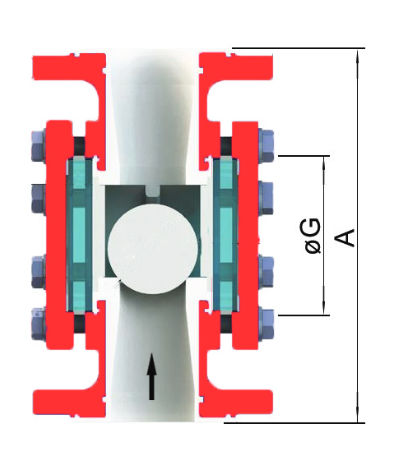

Flange dimensions – DIN EN 558-10
Face to face dimensions – 5 mm lining, Available as Ball Check Valve with Sight Glass
Body material – A216WCB, CF8-M or CF-8
Lining options – 5 mm lining, Available as Ball Check Valve with Sight Glass
Options – PFA, PFA/AS, PVDF, PP, UHMW-PE
توضیحات:
Type
ball, swing
Fluid
for gas, for water
Connexion
DIN
Body
flange
Applications
for the chemical industry, for pharmaceutical applications, for the petrochemical industry, for the paper industry, for chemicals
Material
steel, PVDF, PFA-lined
DN
Max.: 150 mm(5.906 in)Min.: 25 mm(0.984 in)
Pressure
10 bar(145 psi)
Temperature
Max.: 200 °C(392 °F)Min.: -10 °C(14 °F)
