نام محصول:
دریچه چک توپ
نام انگلیسی:

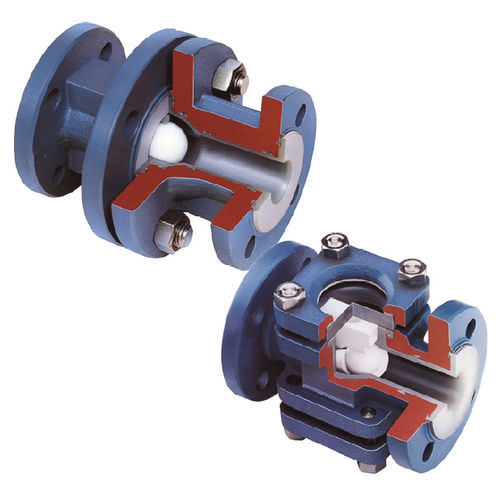

Ball check valve ARV2
برند:
Diflon
مشخصات:
Borosilicate glass, in accordance with DIN 7080, is utilized to withstand high temperatures, mechanical stress and corrosion. For those applications requiring a higher flow capacity, Atomac check valve type ARV/SG should be considered.
Universal Application
The Atomac check valve can be installed either vertically or horizontally dependent upon application.
Solid PTFE Ball
The ball has the same properties as the FEP or PFA lining material.
Full Port Design
The full port design offers excellent flow characteristics to minimize pressure loss.
Low Opening Pressure
The minimum opening pressure required to unseat the ball in the vertical position is 0.07 bar (1 psl).
توضیحات:
Type
ball
Body
flange
Material
PTFE-lined
Other characteristics
high-temperature
DN
Min.: 15 mm(0.591 in)Max.: 200 mm(7.874 in)
Pressure
0.1 bar(1.5 psi)
