نام محصول:
دریچه چک توپ
نام انگلیسی:

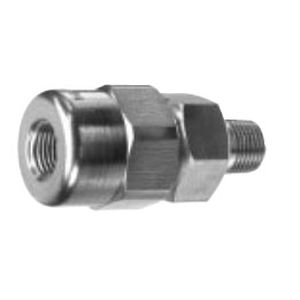

Ball check valve 28800 series
برند:
DELAVAN France
مشخصات:
FEATURES
– Especially designed to stop drooling or dripping in car washing or other cleaning applications to prevent line from emptying during wash cycles.
– The Ball Check Valve Assembly is for use with standard 1/8” and 1/4” NPT Male threaded nozzles.
– The Ball Check Nozzle Assembly is for use with standard flanged type nozzles.
-l Available with spring pressures of 0,2, 0,35 and 0,7 Bar.G.
CONSTRUCTION AND MATERIALS
– 1/8” or 1/4” NPT Male threaded inlets.
– Available in Brass, Stainless Steel and Nylon.
– Ball and spring are Stainless Steel.
– Seal washer is Nylon.
توضیحات:
Type
ball
Body
male
Material
stainless steel, brass
Other characteristics
spring, monobloc
DN
0.125 in, 0.25 in
Pressure
0.2 bar, 0.4 bar, 0.7 bar(2.9 psi, 5.8 psi, 10.2 psi)
