نام محصول:

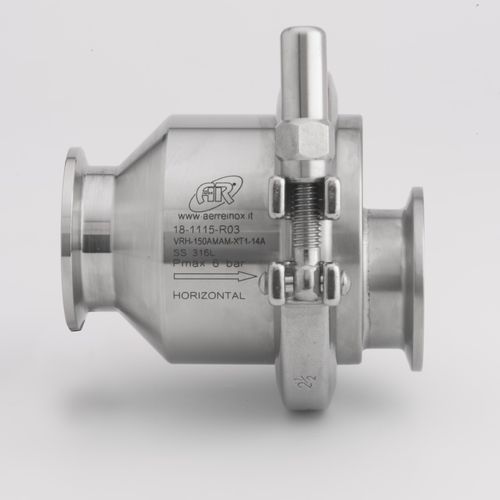

دریچه چک بهداشتی

نام انگلیسی:
Sanitary check valve VR series

برند:
AERRE INOX Srl

مشخصات:
These types of valves are designed to allow the liquid to flow in one direction only, preventing reverse flow and assuring process integrity. The two parts of the body are assembled with a standard clamp for guaranteeing fast mantainance operations. These check valves are suitable for vertical or horizontal installation, fully drainable in both execution.

Butt weld connections extended for orbital welding • Connections according to other norms • Stainless steel shutter + O-ring • Shutter with draining hole • Oxygen service • Electropolishing • Other surface finishes • Costumizable on request • ATEX certification

توضیحات:
Type
ball

Body
weld

Applications
sanitary

Material
stainless steel

Other characteristics
standard, horizontal

DN
Max.: 80 mm(3.15 in)Min.: 15 mm(0.591 in)

Pressure
Max.: 6 bar(87 psi)Min.: 1 bar(14.5 psi)

Temperature
Max.: 50 °C(122 °F)Min.: 0 °C(32 °F)
