نام محصول:
دریچه پنوماتیک
نام انگلیسی:
Pneumatic valve
برند:
Wenzhou Ace Machinery Co., Ltd.
مشخصات:

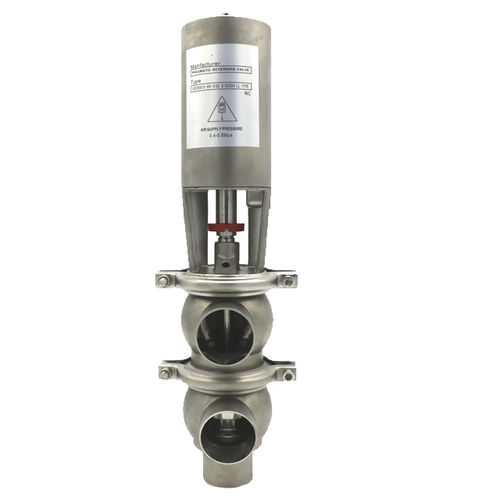

SS304 / SS316L Sanitary Stainless Steel Pneumatic Stop Reversing Valve

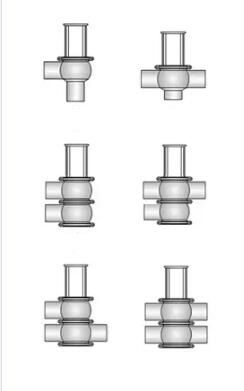

Sanitary flow diversion Seat valves are used to change the flow direction of pipeline.There are lots of different valve body combinations to meet different applications

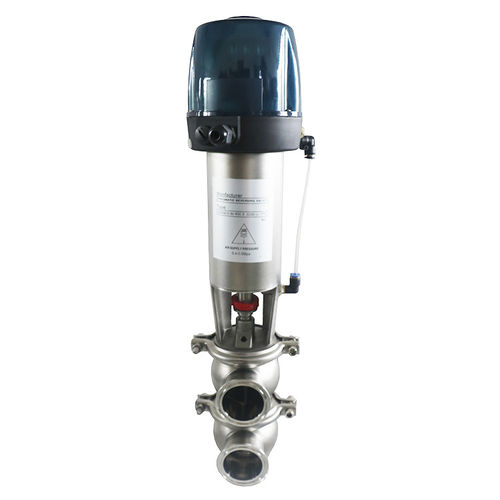

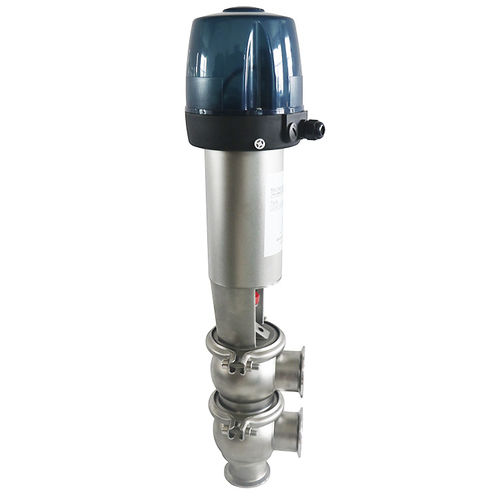

Product Name: SS304 / SS316L Sanitary Stainless Steel Intelligent Pneumatic Stop Reversing Valve
Material: SS304/SS316L
Standard: 3A,DIN,ISO,SMS,IDF,RJT
Max pressure: -10°C ~ +120°C
Connection: Clamp, Weld, Thread
Size: DN25-DN100,1″-4″
Application: Food, wine, beverage, dairy products, toothpaste, cosmetics, biopharmaceutical and other industries.
Packaging&Shipping
1. With export standard bubble film packaging, then for wooden case packaging for alone beer tanks and less brewery equipment.-LCL shipping.
2. If more tanks or complete set of brewery, with bubble film packaging, the for containers for FCL shipping.
3. By bulk carrier or independent containers, the size and quantity rely on the configurations and capacity.
توضیحات:
Operation
pneumatic
Function
stop
Body$
weld, seat
Applications
clamp, beverage, sanitary, food
Material$
stainless steel
DN
Min.: 25 mm(0.984 in)Max.: 100 mm(3.937 in)
Temperature
Min.: -10 °C(14 °F)Max.: 120 °C(248 °F)
