نام محصول:
دریچه پنوماتیک
نام انگلیسی:
Pneumatic valve Basic series
برند:
METAL WORK
مشخصات:
The valves in the BASIC series are a numerically-reduced selection of some types of the most commonly used solenoid valves.

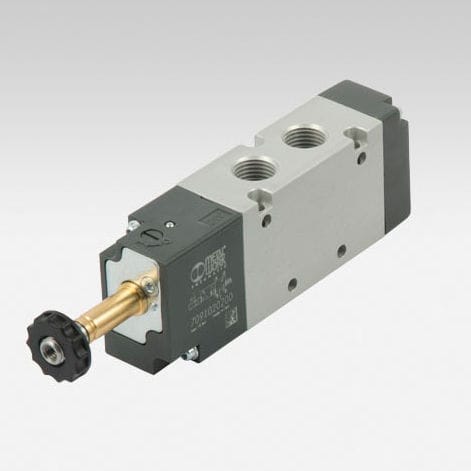

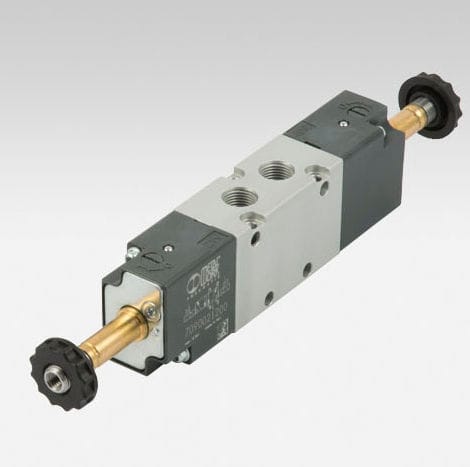

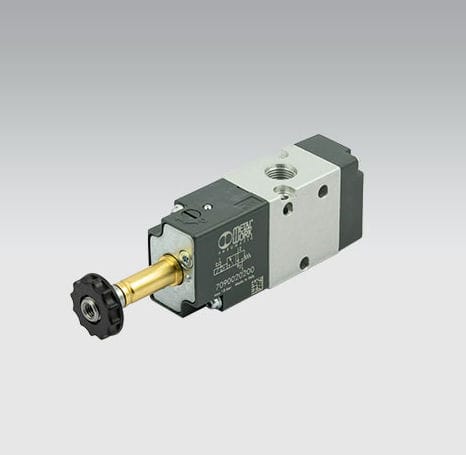

They come in sizes 1/8” and 1/4” and in the 3/2 monostable, 5/2 monostable and 5/2 bistable versions.
Some production processes have been simplified, without affecting product quality and performance.
The body is made of anodized aluminium (without painting) and controls are in dark grey technopolymer.

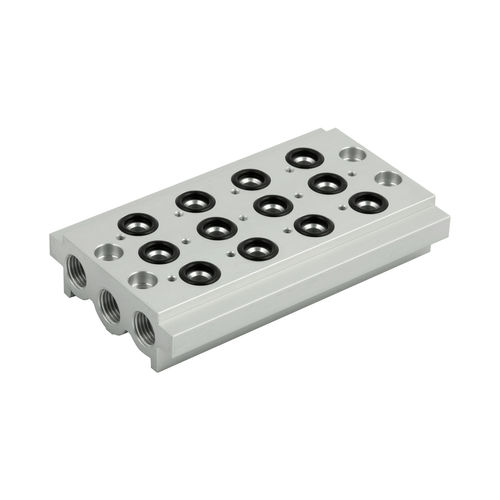

BASIC valves can be assembled with accessories of other families of valves, in particular with 22 mm coils, a 8 mm hole and related connectors, modular bases and the multi-position connectors of the series 70 valves.
توضیحات:
Operation
pneumatic
Body
modular, aluminium, plastic, anodized aluminum
Number of channels
3/2, 5/2-way
Other characteristics
normally closed, bistable
DN
0.125 in, 0.25 in
Pressure
Min.: 1 bar(14.5 psi)Max.: 10 bar(145 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 60 °C(140 °F)
Flow rate
400 l/min, 550 l/min, 750 l/min, 1,100 l/min(105.67 us gal/min, 145.29 us gal/min, 198.13 us gal/min, 290.59 us gal/min)
