نام محصول:
دریچه پنوماتیک
نام انگلیسی:

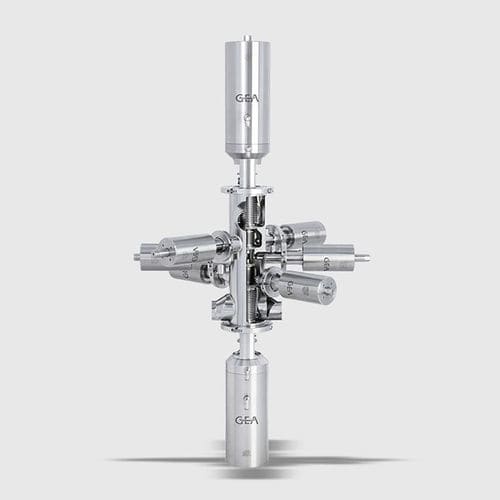

Pneumatic valve Aseptomag® AXV
برند:
GEA Procomac S.p.A.
مشخصات:
Aseptomag® double-chamber valves AXV are used for the mixproof shut-off of incompatible products at pipe junctions in aseptic processing plants.
Welded stainless steel bellows are used to hermetically seal the product area from outside contamination. The three integrated steam barriers (ISB) can be operated independently from each other and enable the safe separation of both product lines, even when two of the four valve seats are lifted. The integrated function of the single-seat lifting capability permits fully automatic seat cleaning during production. Thanks to the three independent steam barriers, AXV valves enables one side maintenance while production on the other side and offer maximum process and product safety.
توضیحات:
Operation
pneumatic
Function
mix-proof, shut-off
Body$
double, welded
Applications
process
Material$
stainless steel
Associated function
for filling applications
Other characteristics
aseptic
Pressure
10 bar(145 psi)
Temperature
Min.: -20 °C(-4 °F)Max.: 150 °C(302 °F)
