نام محصول:
دریچه پر کردن
نام انگلیسی:

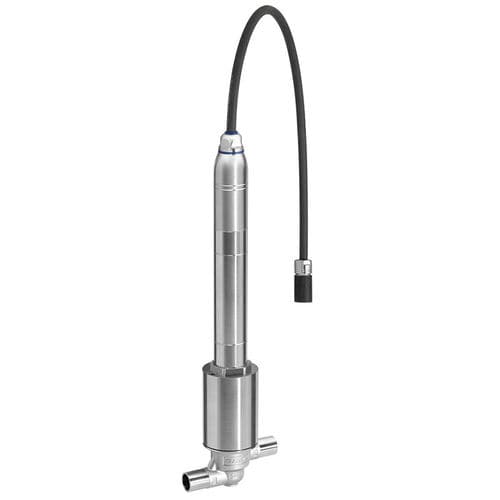

Filling valve F60
برند:
GEMÜ Gebrüder Müller Apparatebau GmbH & Co. KG
مشخصات:
The GEMÜ F60 motorized 2/2-way filling valve is designed for extremely precise and fast filling processes in aseptic and hygienic areas of application. GEMÜ F60 enables activation in real time, ultra-quick load cycles and high flow rates of up to 18.500 l/h. The sealing concept of the valve is based on the GEMÜ PD design, whereby the actuator is hermetically separated from the medium. All actuator parts (except the seals) are made from stainless steel.
Features
Hermetic separation between medium and actuator due to PD sealing technology
Long service life with over 10 million cycle duties
Flexible and fast program changes thanks to freely programmable filling curves
Fast filling cycles (less than 400 ms) possible
Designed according to Hygienic Design guidelines and EHEDG certified
FDA compliant as standard and suitable for contact with food according to Regulation (EC) No. 1935/2004
Very fast and easy maintenance thanks to quick locking system and innovative cartridge spare parts system
Connection types:Clamp | Spigot
Connection standards:ASME | DIN | EN
Body materials:1.4435, investment casting material
Seal materials:PTFE
Supply voltage:48 V DC
Conformities:3A | EAC | EHEDG | FDA | Reg. (EU) No. 10/2011 | Regulation (EC) No. 1935/2004 | Regulation (EC) No. 2023/2006 | USP
توضیحات:
Type
globe
Operation
electric
Applications
for the food industry, hygienic, for precision applications
Material$
stainless steel
Number of channels
2/2-way
Associated function
filling
Other characteristics
aseptic, motor-driven
DN
Min.: 8 mm(0.315 in)Max.: 25 mm(0.984 in)
Pressure
Min.: 0 bar(0 psi)Max.: 7 bar(101.5 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 140 °C(284 °F)
Flow rate
Min.: 0 l/h(0 us gal/h)Max.: 18,500 l/h(4,887.18 us gal/h)
