نام محصول:
دریچه پایین مخزن
نام انگلیسی:

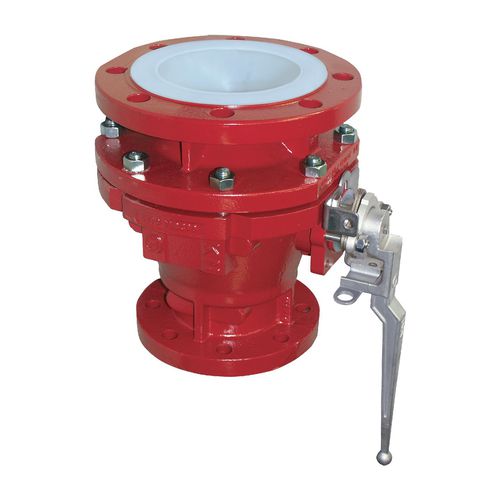

Tank bottom valve KA-N series
برند:
Richter Chemie Technik
مشخصات:
Features
•Cost-effective alternative to bottom drain valves
•Maximum reliability: one piece ball/stem unit avoids weak spot ball to stem
•Universally applicable: many options in combination with a thick-walled PFA lining
•Reliable even in extreme conditions: ENVIPACK stuffing box sealing
Specifications
•Design – DIN/ISO ANSI/ISA-75.08.01
•Nominal Pressure – 16 bar
•Lining – PFA
•Housing Material – EN-JS 1049 / ASTM A395
•Flanges to ISO 7005-2, type B or flanges drilled to ASME B16.5 class 150, raised face
•Temperature Range – -60 °C to +200 °C (-75 °F to +400 °F)
•Certifications – EU Pressure Equipment Directive 2014/68/EU, German Clean Air Act (TA-Luft)
توضیحات:
Type
ball
Operation
manual
Function
purge
Body$
flange, 1-piece, PFA-lined
Applications
tank bottom
Other characteristics
ISO, DIN
DN
Min.: 25 mm(0.984 in)Max.: 150 mm(5.906 in)
Pressure
16 bar(232.1 psi)
Temperature
Min.: -60 °C(-76 °F)Max.: 200 °C(392 °F)
