نام محصول:
دریچه هیدرولیکی
نام انگلیسی:

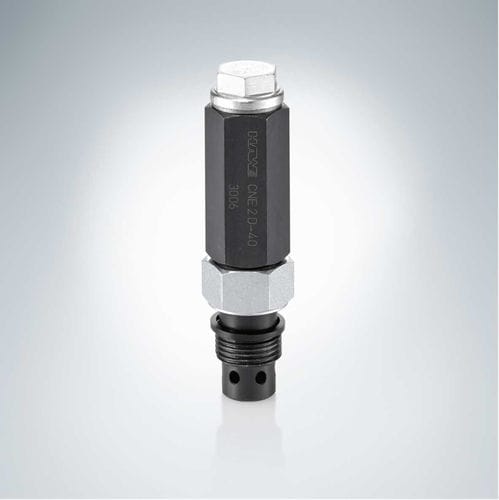

Hydraulically-operated valve CNE series
برند:
HAWE Hydraulik SE
مشخصات:
Shut-off valves are a type of pressure control valve. They receive the control oil from a high-pressure circuit and switch the delivery flow of a low-pressure pump to unpressurised circulation if the pressure value set has been reached. During this process, the consumer side is separated from the idle circulation by a zero-leakage check valve. If the pressure on the consumer side drops below the pressure setting, the idle circulation is interrupted and the oil fed to the consumer again.
Shut-off valves or accumulator charging valves are a type of pressure control valve. They switch the delivery flow of a pump to unpressurised circulation if the pressure value set is reached. During this process, the consumer side is separated from the idle circulation by a zero-leakage check valve. If the pressure drops in the consumer side, the idle circulation is interrupted and the oil fed to the consumer again.
Via a control line the higher pressure in the high-pressure circuit holds open the pressure-controlled 2 directional valve type CNE and with it the idle circulation. In the low-pressure circuit the valve acts simultaneously as a pressure-limiting valve.
The valve type CNE can be screwed-in and can be integrated into control blocks. The necessary mounting holes are straightforward to make.
Features and benefits:
Compact design
Easily produced mounting hole
Intended applications:
Dual-stage systems (high-pressure, low-pressure)
Jigs
توضیحات:
Operation
hydraulically-operated
Function
shut-off, pressure-control
Media
for oil
Body$
screw-in
Applications
process, pump
Associated function
switching
Other characteristics
compact, high-pressure, low-pressure
Pressure
75 bar, 420 bar, 500 bar(1,087.8 psi, 6,091.6 psi, 7,251.9 psi)
Temperature
Min.: -40 °C(-40 °F)Max.: 80 °C(176 °F)
Flow rate
30 l/min(7.93 us gal/min)
