نام محصول:
دریچه مینیاتوری
نام انگلیسی:

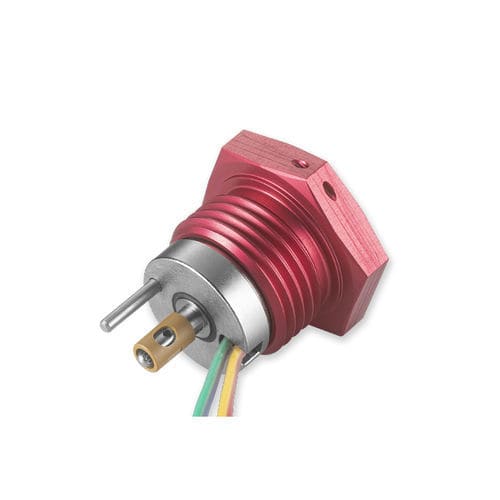

Miniature solenoid valve SDBB series
برند:
THE LEE COMPANY
مشخصات:
Lee miniature piloting solenoid valves are the most compact powered components we offer, available in a configuration just 0.875 of an inch in diameter and weighing less than 0.14 lbs. Their threaded bodies are easy to install and maintain, and they are available for system pressures up to 5000 psi. Meanwhile, the efficient coil design requires power levels as low as 7.8 Watts at 28 Vdc. Many options are available, including a single or dual coil configuration, 2-way or 3-way porting, a normally open or normally closed position, and a customizable electrical interface.
The Piloting Dual-Coil Solenoid Valve utilizes an additional coil to provide electrical redundancy for added safety. In exchange, the package size and weight of the valve are slightly increased when compared to the single-coil design. This valve utilizes patented MultiSeal® technology, eliminating the need for O-rings, simplifying port layout, and offering significant space and weight savings. The innovative coil design offers low power consumption and fast response times.
Key Product Facts
Leakage:1 cc / minute max
Weight:0.20 lbs max (lead wire version)
2-Way and 3-Way Configurations Available
توضیحات:
Control
pilot-operated
Ports/positions
3-way
Function
NC, NO
Medium
hydraulic
Body
compact, threaded, miniature
Other characteristics
high-pressure, standard, high-flow, high-performance, low power consumption, magnetic latching
Voltage
Max.: 50 VMin.: 12 V
Temperature
Max.: 275 °F(135 °C)Min.: -65 °F(-54 °C)
Pressure
3,000 psi, 4,000 psi, 5,000 psi
