نام محصول:
دریچه مهر و موم فشار
نام انگلیسی:

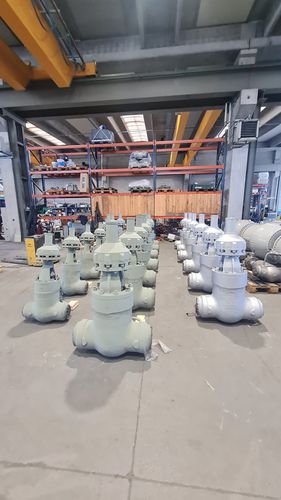

Pressure seal valve GAV-PS
برند:
Athena Engineering S.r.l.
مشخصات:
– Unique feature: The body-bonnet joints seal improves as the internal pressure within the valve increases.
– Adopt high pressure and high temperature applications, proven over years of service in conventional thermal and nuclear power plants as well as other services around the world.
– Also preferred in high pressure, high temperature hydrocarbon or petrochemical processing services
– Commonly, used for medium types: steam, condensate, boiler feedwater.
– Main applications: petrochemical industry, steam circuits, boiler circulation, oil and gas applications, power stations
– Designed based on API/BS and ASME B16.34.
توضیحات:
Type
gate
Operation
with handwheel
Function
shut-off, regulating
Media
for water, for oil, for chemical products, for fuel, for gas, for steam
Applications
for the chemical industry, for industrial applications, for process applications, for pipelines, for the petroleum industry, for heating, for the gas industry, for the paper industry, cryogenic, boiler, power line, refinery, for the mining industry, for gas turbines
Material$
steel, alloy, Hastelloy®, stainless steel, carbon steel, cast steel
Number of channels
2-way
Fluid specification
for aggressive media, for corrosive fluids, for abrasive fluids
Associated function
transfer
Other characteristics
ISO, high-pressure, high-temperature, motor-driven, pressure seal, fire-safe, ATEX
DN
Min.: 2 inMax.: 30 in
Pressure
Min.: 100 bar(1,450.4 psi)Max.: 420 bar(6,091.6 psi)
Temperature
Min.: -29 °C(-20 °F)Max.: 540 °C(1,004 °F)
