نام محصول:

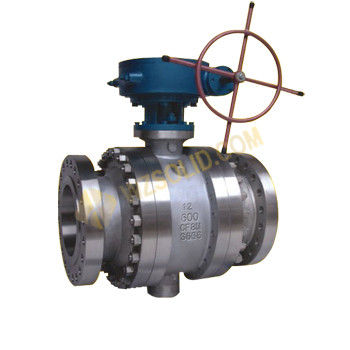

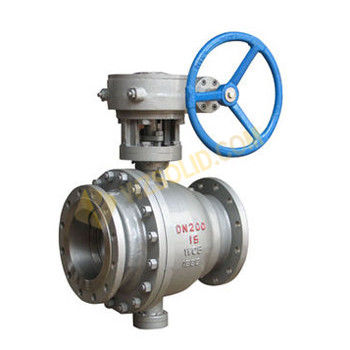

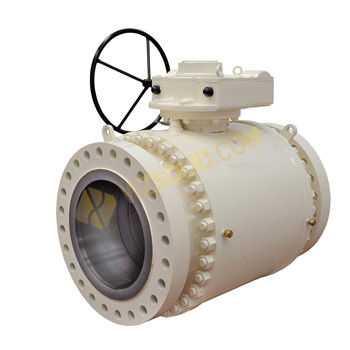

دریچه مجهز به ترونیون
نام انگلیسی:
Trunnion-mounted valve
برند:
Wenzhou Solid Mechanical Equipment Co., Ltd.
مشخصات:
Detailed Product Description
Application: – industrial Usage, Water Industrial Usage
Channel: – Straight Through Type
Connection Form: – Flange
Driving Mode: – Manual
Function: – Blow-Down Valve
HS Code: – 8481
Material: – Cast Steel/Stainless steel
Model NO.: – Q347 Q41 Q71
Nominal Pressure: – ANSI CLASS 150-900
Origin: – China
Pressure: – Class150 – Class2500 or Pn16 – Pn420
Size: – 2″-48″
Specification: – PED/CE, API 6D, API 607, ISO9001
Structure: – Trunnion Ball Valve
Temperature: – Normal Temperature
Trademark: – SOLID
Transport Package: – Plywood Case
Type: – Trunnion Ball Valve
Trunnion mounted ball valve usually has floating valve seat, under the media pressure, the valve moves, so that the sealing ring tightly pressed on the ball in order to ensure the seal. Usually in the upper and lower shaft there are bearings, operating torque is small, suitable for high pressure and large diameter of the valve. In order to reduce the valve operating torque and increase the reliability of the seal, valve seal has emerged in recent years, both the pressure injection of a special lubricant in the sealing surface, to form a layer of film that enhances the sealing, and reduce operating torque, more suitable for large-diameter high-pressure valve.
trunnion mounted ball valve is suitable for Class150 to Class2500 P N ~ C, 16 ~ P N 160, JIS 10K to JIS 20K of the pipeline, used to cut off or connect the line of medium, use different materials, can be separately applied to water, steam, oil, liquefied petroleum gas, natural gas, coal gas, nitric acid, acetic acid, oxidizing medium, urea and other media.
توضیحات:
Type
ball
Operation
with handwheel, pneumatically-operated
Media
for water
Body$
flange, small, trunnion-mounted
Applications
for industrial applications
Material$
stainless steel, cast steel
Other characteristics
high-pressure, ANSI
DN
Min.: 2 inMax.: 24 in
Temperature
Min.: -29 °C(-20 °F)Max.: 200 °C(392 °F)
