نام محصول:
دریچه مجهز به ترونیون
نام انگلیسی:

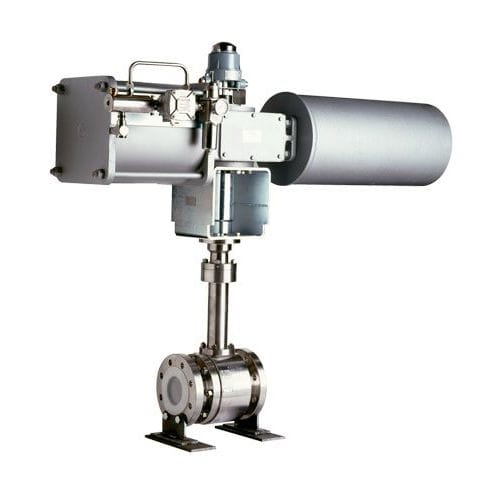

Trunnion-mounted valve SAT
برند:
KTN
مشخصات:
GUIDED SPHERE VALVE METAL SEAT WIDE RANGE
The KTN SAT is the best KTN design to solve the widest range of applications. The main goal of this design is its philosophy of achieving the highest security using unmatched advanced technology. Like the entire PENTA BY KTN range, the sat valves are equipped with PENTAFITE metal seats to allow the manufacture of leaking metal seats 0, adaptable to a wide range of services allowing working temperatures up to 780ºC in continuous processes.
The typical elastic properties of the PENTAFITE seats and the full bolted construction allow for easy maintenance without the need to adapt the seats to the sphere. We also have extremely hard coatings. SAT valves are available in floating type and Trunnion type, reduced pass or full pass and all include an automatic pressure relief system.
Features:
•Range: DN1/2 – DN32
•Class: 150/300/600/900/1500/2500
•DIN: 16-25/40-50/64-100/150/250/420
•Working temperature: -100ºC / 720ºC
•Seat: Check data sheet
•Automatic pressure relief system
•Suitable for service with abrasive solids
•
•Long life service
Standard:
•Design:
ASME B16.34/API 608/EN 12569 / EN 17292
ASME VIII DIV.1 / EN 12516-1
•Flanges:
ASME B16.5 CL.150/300/600/900/1500
EN 1092-1 PN 10/16/25/40/63/100
DIN 2632/2633/2634/2635/2636/2637/2638
•Test: ASME B16.104 API 598 EN 12266-I ISO 5208 BS 6755-I
توضیحات:
Type
ball
Operation
manual, electrically-operated, pneumatically-operated, hydraulically-operated
Body
flange, trunnion-mounted
Applications
for industrial applications
DN
Max.: 800 mm(31.496 in)Min.: 15 mm(0.591 in)
Pressure
Max.: 420 bar(6,091.6 psi)Min.: 16 bar(232.1 psi)
Temperature
Max.: 720 °C(1,328 °F)Min.: -100 °C(-148 °F)
