نام محصول:
دریچه متناسب
نام انگلیسی:
Proportional valve AVENTICS 616
برند:
ASCO
مشخصات:

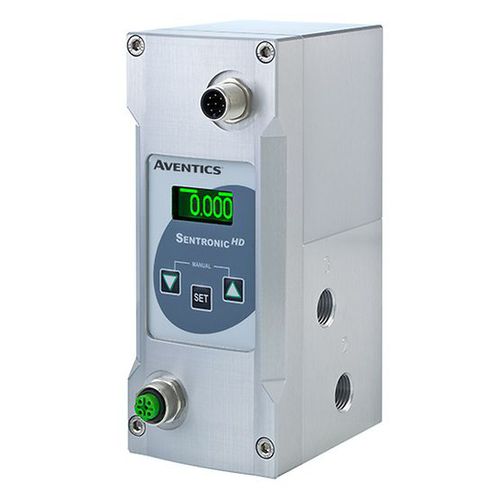

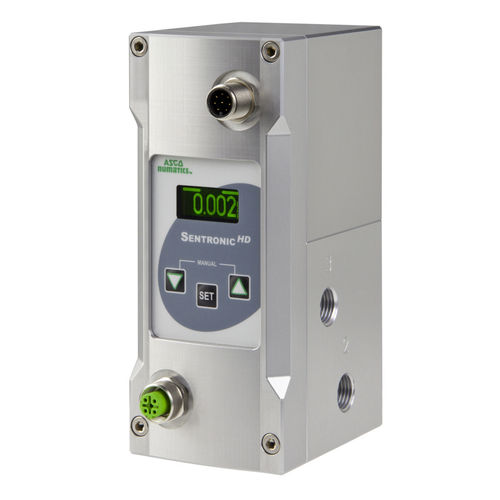

The AVENTICS Series 616 SentronicHD is a highly accurate 3-way valve with digital control and a broad range of diagnostic functions. The Data Acquisition Software (DaS) that comes with SentronicHD can be used to adjust the valve´s control parameters to a specific application. Command signal, feedback signal, and control parameters can be viewed in real time and adjusted as required. The SentronicHD valve can be configured for dual-loop control of process variables such as flow, force, speed, RPM, and temperature. The valve is suitable for air ride suspension systems, analytical and diagnostic equipment, biofuels, and bottling applications.
Specifications
Frequency 50/60 Hz
Operation Environment Indoor
Port Type G ISO228/1-G BSPP, NPTF
Standard & Regulations CE, EAC, IP65
Features
Comprehensive diagnostic functions include input pressure, target value, and current monitoring
Industry 4.0 ready for future-proof applications
Minimal power consumption (< 5 W) for low-power and remote applications
Integrated web server and digital display for remote access and easy maintenance
DaS HD software included for optimal valve configuration and calibration
Vacuum service and pressure up to 10bar (145 psi) versions are available
توضیحات:
Type
plug
Operation
pneumatic
Function
for control, pressure-control
Media
for air, for natural gas, for inert gases
Body$
IP65
Applications
process, vacuum, high-precision, server
Material$
aluminum
Number of channels
3-way, 3/2-way
Other characteristics
standard, normally closed, proportional, digital
DN
0.25 in
Pressure
10 bar(145 psi)
