نام محصول:
دریچه لغزنده
نام انگلیسی:
Slide valve RGV series
برند:
Mucon
مشخصات:

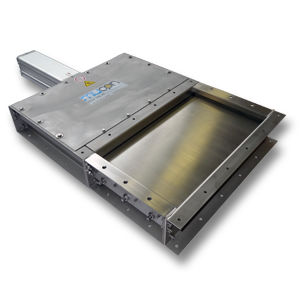

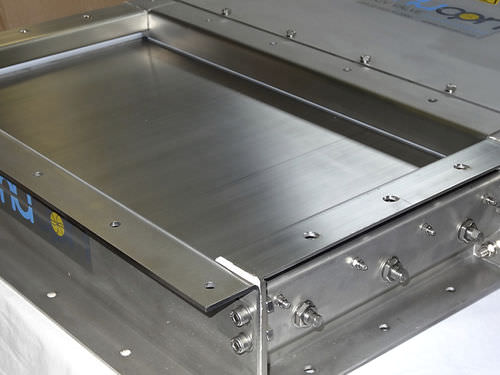

The Mucon RGV Roller Gate Slide Valve has been designed to meet the needs of the bulk materials handling industry for a robust, heavy duty isolation valve.
It is as modular and configurable as it is robust and reliable.
It’s patented blade support system provides uninterrupted flow of material through the valve body, but can still accommodate an inlet deflector if required by the application.

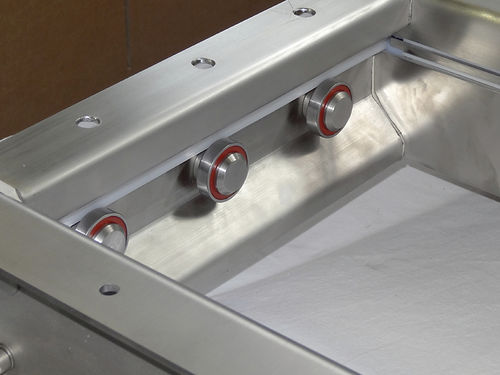

Pre-loaded and self wear compensating seals help prevent the loss of process material and are replaceable without the need to remove the valve from the process line.

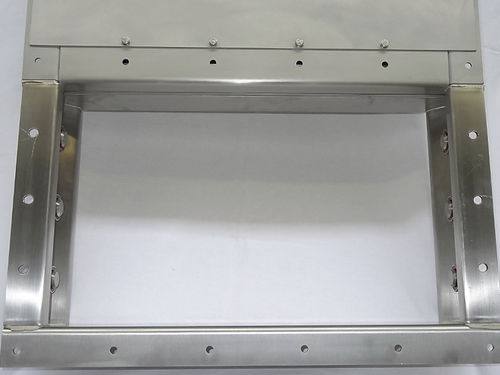

Whilst we offer a range of standard sizes from 150mm (6″) to 600mm (24″) square, our manufacturing methods allow us to easily produce custom sizes in square or rectangular configurations.
The valve can also be supplied with a square to round adapter for the inlet and/or outlet.
The isolation and control of most dry powders, pellets, grains and granules
توضیحات:
Type
slide
Operation
manual
Function
regulating
Applications
for bulk materials
Other characteristics
for bulk materials
DN
Min.: 150 mm(5.906 in)Max.: 600 mm(23.622 in)
