نام محصول:
دریچه لغزنده
نام انگلیسی:
Slide valve SLVSA
برند:
LGM ENGINEERING
مشخصات:
AIR FILTER REGULATORS & AIR TREATMENT
Born from the experience of Shavo Norgren, Shavo products are known for their ease of use and maintenance.
The great variety of solutions and results that can be obtained through Shavo applications, make Shavo components the best on the market in terms of value added and conditions. Shavo products are multi-certified as a standard.
The SHAVO product range includes:
Filter Regulators
Filters
Volume booster
Lock-up valves
Unidirectional and bidirectional flow regulators
Quick Exhaust valves

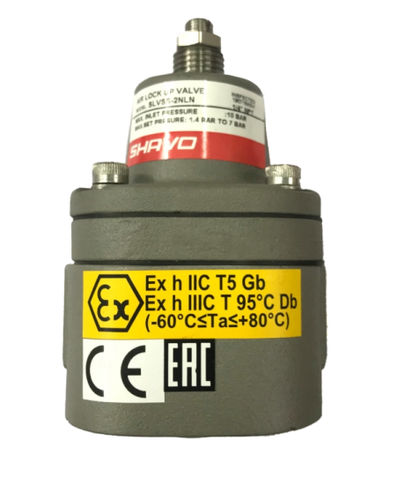

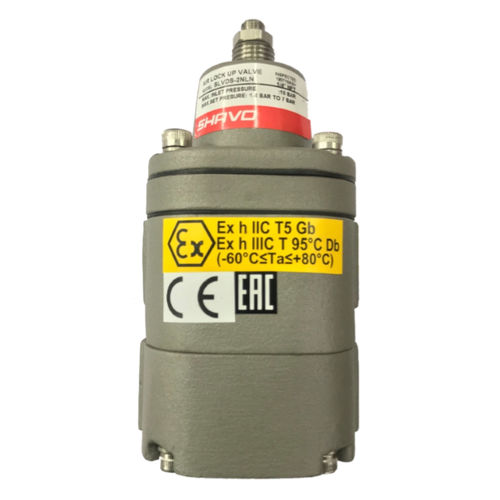

Shavo’s Lockup Valve retains set supply air pressure when supply air is suddenly failed by accident and its pressure becomes lower than a set pressure. Provides reliable shutdown and isolation. Excellent stability and repeatability (from control device of the actuator whenever air pressure falls below operating safety point.) Compact light weight design. Single and double locking possibility. Accurate adjustment and high flow capacity. CE, ATE, EAC (CUTR-10) approved. All external parts are NACE MR 0175 approved.
توضیحات:
Type
slide
Operation
hydraulic
Function
for control, adjustment, isolation
Media
for compressed air
Applications
pipe, actuator, variable-inlet pressure control
Material$
stainless steel
Associated function
exhaust
Other characteristics
compact, standard, unidirectional, double-acting
DN
0.25 in
Pressure
Min.: 0 bar(0 psi)Max.: 10 bar(145 psi)
Temperature
Min.: -60 °C(-76 °F)Max.: 80 °C(176 °F)
