نام محصول:
دریچه لغزنده

نام انگلیسی:
Slide valve FS XXL

برند:
Jaudt Dosiertechnik Maschinenfabrik GmbH

مشخصات:

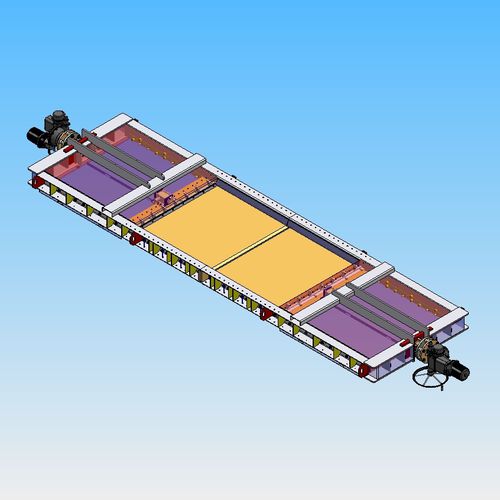

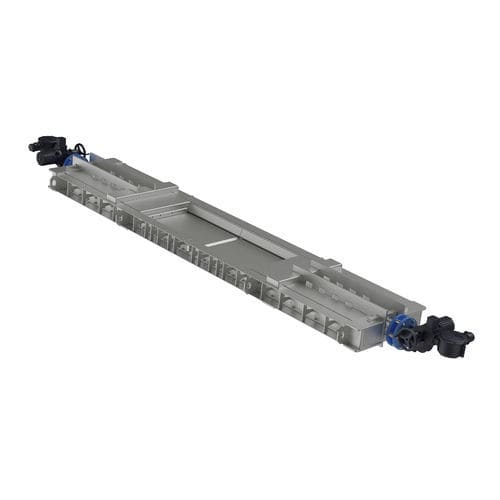

Slide gate with a large nominal width for shutting off coarse bulk material for robust applications.

MATERIAL HOUSING :Structural steel, heat-resistant steel, stainless steelMATERIAL SLIDING PLATE :Structural steel, heat-resistant steel, stainless steel, hardoxSLIDING PLATE GUIDING :Roller stainless steelSEALING :Adjustable packing gland (felt / aramide / PTFE / graphite)TIGHTNESS IN THE PASSAGE :DusttightTIGHTNESS TO THE OUTSIDE :DusttightDRIVE :Manual, pneumatic cylinder, electric motor, hydraulic cylinderWEAR PROTECTION :Exchangeable infeed funnel (stainless steel / hardox)

توضیحات:
Type
slide

Operation
manual, pneumatically-operated, electric, hydraulic

Function
blocking

Body$
large

Applications
bulk, motor, cylinder, plate

Material$
steel, PTFE, stainless, graphite

Associated function
discharge

Other characteristics
for bulk materials

DN
Min.: 1,000 mm(39.37 in)Max.: 1,500 mm(59.055 in)

Temperature
80 °C, 250 °C, 400 °C, 800 °C(176 °F, 482 °F, 752 °F, 1,472 °F)
