نام محصول:
دریچه لغزنده
نام انگلیسی:

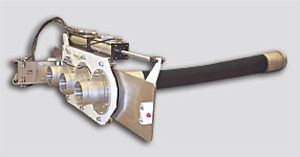

Slide valve 615 series
برند:
Dynamic Air
مشخصات:
Change direction of air-conveyed material
The Three-Way Sliding Hose Switch by Dynamic Air Inc. is a smooth, full ported, air operated switch for use in almost any pneumatic conveying system. It is rated to 125 PSIG and is available in both mild steel or stainless steel construction. Inflatable seals at each port provide a dust tolerant seal on all ports simultaneously, plus a low friction sliding plate provides easy movement of the hose from port to port. The flexible hose is available in a wide variety of materials from abrasion resistant construction to a food grade construction. Position indicators and pressure switch sensors provide important safety alarms during operation.
Features
Full port design
Inflatable seals
Position indicators standard
Air operated
125 PSIG design
Low friction
Schedule 40 pipe standard
توضیحات:
Type
slide
Operation
pneumatically-operated
Function
diverter
Media
for liquid food products and beverages
Number of channels
3-way
Pressure
125 psi
