نام محصول:
دریچه لغزنده
نام انگلیسی:

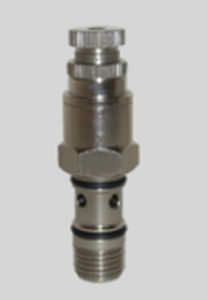

Slide valve MV47 series
برند:
C.Matic S.p.A.
مشخصات:
When installée! in a pneumatic circuit, the pressure control sets the working pressure of ail the connected components. The pressure adjustment will be thereby kept steatfy for a long time. h can also be used as an economuer when connected between the valve and the cylinder to operate. Pressure is being saved and rod speed decreased in the desired direction. A big energy saving is this way obtained.
DATASHEET
Recommended tubings:
according to the fitting connected to the pressure control.
Application field:
pneumatic installations fed with filtered. lubricated air.
توضیحات:
Type
slide
Operation
pneumatically-operated
Function
pressure-control
Media
for air
DN
0.125 in, 0.25 in
Pressure
Min.: 0 bar(0 psi)Max.: 8 bar(116 psi)
Temperature
Min.: 0 °C(32 °F)Max.: 70 °C(158 °F)
Flow rate
340 l/min, 580 l/min(89.82 us gal/min, 153.22 us gal/min)
