نام محصول:
دریچه لغزنده
نام انگلیسی:

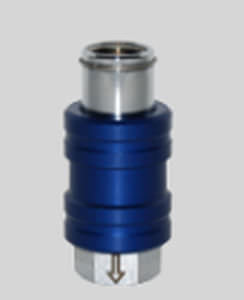

Slide valve MV26 series
برند:
C.Matic S.p.A.
مشخصات:

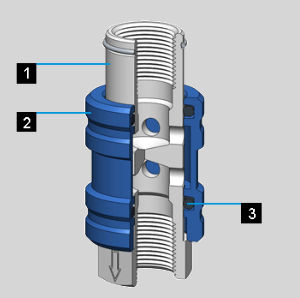

The valve is used to section a pneumatic installation. Sliding the sleeve on the rod. both ON and OFF positions can be achieved. When the sleeve is against the rod hexagon. the flcw goes in the arrcw direction (ON), pushing it backvvards the air supply is eut off and the installation is vented (OFF)
DATASHEET
Recommended tubings:
according to the fitting connected to the valve.
Application field:
pneumatic installations fed vvith filtered. lubricated air.
توضیحات:
Type
slide
Operation
pneumatically-operated
Function
selector
Media
for air
DN
Min.: 0.125 inMax.: 0.5 in
Pressure
Min.: 0 bar(0 psi)Max.: 10 bar(145 psi)
Temperature
Min.: 0 °C(32 °F)Max.: 70 °C(158 °F)
Flow rate
Min.: 250 l/min(66.04 us gal/min)Max.: 5,050 l/min(1,334.07 us gal/min)
