نام محصول:
دریچه لغزنده

نام انگلیسی:
Slide valve MSV-..-.

برند:
Beswick Engineering Co, Inc.

مشخصات:

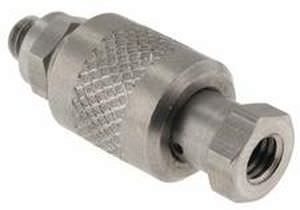

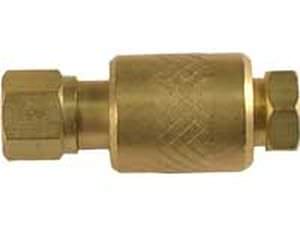

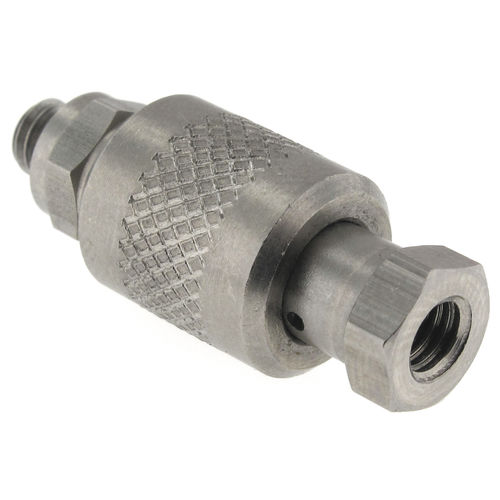

The MSV series slide sleeve valve provides an efficient in-line three-way valve. When the sleeve is moved to the “ON” position, fluid is allowed to pass through the valve. When the sleeve is moved to the “OFF” position, the outlet is exhausted to the atmosphere and fluid is prevented from exiting the inlet port. The valve can be attached directly on a device to be isolated and does not require mounting.

Approximate Weight: 15g in brass and 303 stainless. Weight will vary slightly, depending on configuration.

Porting:10-32 internal, 10-32 external, or barbed inlet port, 10-32 internal threaded outlet port.

Features

Inline mounting for easy integration

Allows for venting of downstream pressure when in “OFF” position

توضیحات:
Type
slide

Operation
manual

Function
shut-off

Media
for water, for oil, for chemical products, for fuel, for gas, for air

Body
threaded, in-line, miniature, stainless steel, brass

Applications
for the chemical industry, for the food industry, for pharmaceutical applications, instrumentation, for medical applications, laboratory, for the semiconductor industry

Associated function
exhaust

Other characteristics
compact, corrosion-resistant, high-performance, in-line, chemical-resistant

DN
Max.: 1.1 mm(0.043 in)Min.: 1 mm(0.039 in)

Pressure
Max.: 13.8 bar(200.2 psi)Min.: 0 bar(0 psi)
