نام محصول:
دریچه غیر برگشتی
نام انگلیسی:

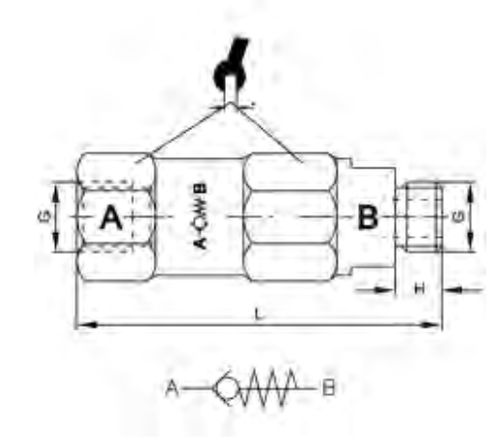

DIN non-return valve IG-AG
برند:
ITV
مشخصات:
– Throttle and non-return valves with various tube connection options
– Brass, aluminium and plastic throttle valves
– For various applications
Operating temerature
-10°C to +70°C
0°C to +70°C
Non-return valve, Quick exhaust valve
Valves in general
Flow regulators
– with banjo body
– made of plastic
– block shaped
Bidirectional flow regulators, pressure control
valve, pneumatic switch, slide valve
ipso 032, 033
Quick exhaust valve
VSR
Materials
Body, brass, nickel-plated (Ms58)
Body, plastics
Body, aluminium
O-Ring, NBR
Sealing, plastics
Membrane, plastics
Flow regulators with banjo bodies, straight
unidirectional connection, non-return valves,
slide valve, quick exhaust valve
Flow regulators 041, 042, 043
Unidirectional flow regulator (block shaped)
Valves in general
Valves in general
Quick exhaust valve
Threads
cyl. threads DIN EN ISO 228
con. threads DIN EN ISO 10226 (DIN 2999)
metr. threads ISO 261
Medium
Lubricated and non-lubricated compressed air
توضیحات:
Connexion
DIN
Body
male-female
Applications
throttle
Material
brass, nickel
Other characteristics
pneumatic
DN
0.125 in, 0.25 in, 0.5 in
Pressure
Min.: 0 bar(0 psi)Max.: 10 bar(145 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 70 °C(158 °F)
