نام محصول:
دریچه ضد مخلوط
نام انگلیسی:

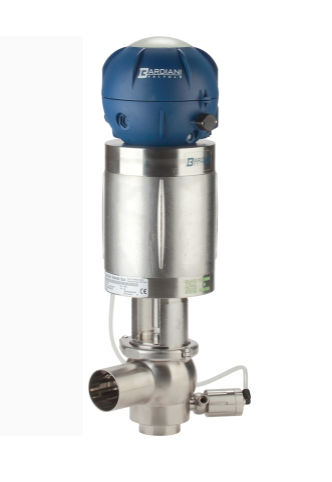

Mix-proof valve BZAW3
برند:
BARDIANI VALVOLE S.p.a.
مشخصات:
Any risk of contamination: created to guarantee complete separation between two different
products
Maximum versatility for different applications and products
Easy maintenance without the need for special tools
Sturdiness: valve bodies made from solid bar
The BZAW3 is a double seal valve designed to guarantee separation between two fluids.
The special design of the shutter provide a separation chamber between the two seals. This ensures that any product leaks flow out through the two auxiliary valves located on the separation chamber, avoiding any contact between the two fluids.
STANDARD FEATURES
EPDM, FKM, HNBR gaskets
توضیحات:
Type
diaphragm
Operation
pneumatic
Function
mix-proof, isolation
Body
double, EPDM
Applications
for industrial applications
Number of channels
3-way
Other characteristics
with seal, media separated
DN
Max.: 150 mm(5.906 in)Min.: 25 mm(0.984 in)
Pressure
10 bar(145 psi)
Temperature
Max.: 25 °C(77 °F)Min.: -10 °C(14 °F)
