نام محصول:
دریچه صندلی زاویه

نام انگلیسی:

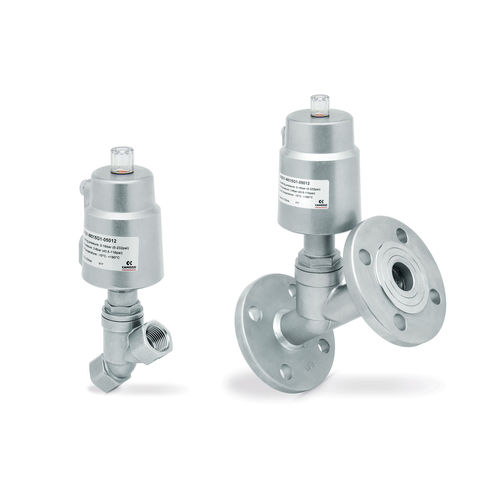

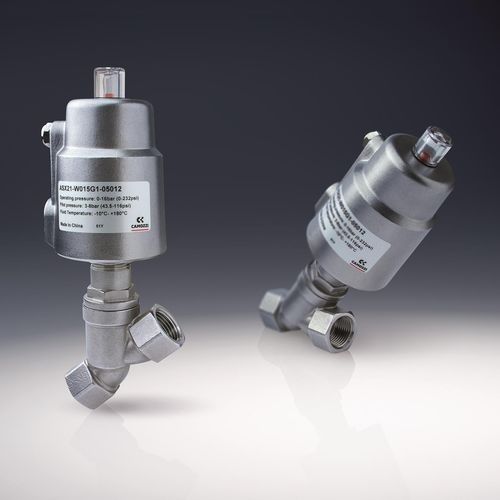

Angle seat valve ASX series

برند:
CAMOZZI AUTOMATION

مشخصات:

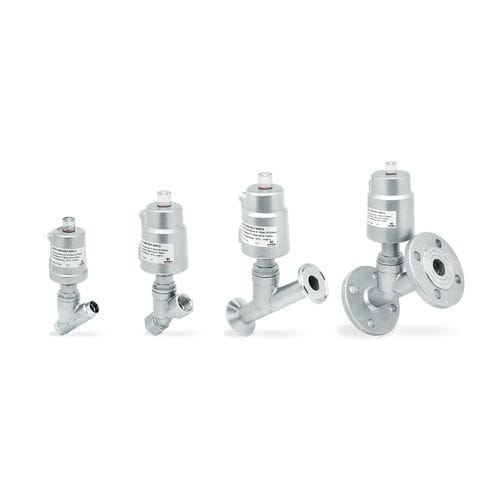

Angle seat valves are available in different versions with regard to nominal diameter, type of fluid and process connections.

They are able to manage media that are corrosive or contain suspended solid particulate matter and can be used in applications with high operating temperatures.

The operation is determined by the pneumatic drive of a single acting, guided piston actuator with spring return.

There are also models available with double acting actuators, without spring.

For liquid media we recommend the models with flow direction under the seat.

For gas or steam we recommend the models with flow direction above the seat.

Benefits:

High flow rate

Low fluid resistance

Versions available that prevent water-hammering effects

Compliant with Directive PED 2014/68/EU

Compliant with the ATEX Directive

Sectors and applications: Textile – Chemical – Pulp & Paper – Food & beverage – Energy – Pharmaceutical & Cosmetic – Air & gas treatment – Water treatment – Stream & Hot water treatment

توضیحات:
Type
piston

Operation
pneumatic

Function
for control

Media
for water

Body$
flange, angle seat

Applications
industrial, for the chemical industry, for the food industry, for viscous liquids, beverage, for the gas industry, for the pharmaceutical industry

Material$
stainless steel

Number of channels
2/2-way

Other characteristics
normally closed, double-acting, normally open, for high flow rates, ATEX

DN
Min.: 8 mm(0.315 in)Max.: 100 mm(3.937 in)

Pressure
Min.: 0 bar(0 psi)Max.: 16 bar(232.1 psi)

Temperature
Min.: -10 °C(14 °F)Max.: 220 °C(428 °F)

Flow rate
Min.: 2 m³/h(70.63 ft³/h)Max.: 132 m³/h(4,661.54 ft³/h)
