نام محصول:
دریچه شناور
نام انگلیسی:
Float valve FV, FFV
برند:
EFSVALVES
مشخصات:

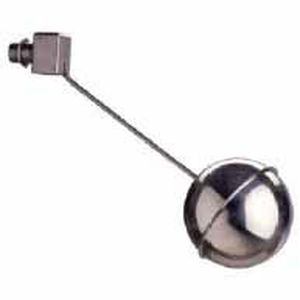

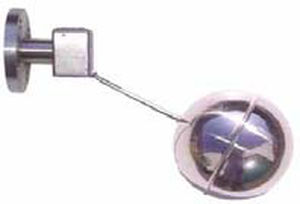

The float valve is direct action device, the float or buoy is acting by the thrust of the fluid that finally is transmitted to the valve arm and closing seat. Valves are available in ductile iron and diameter from DN 50 (2” )up to DN 250 ( 10”)
توضیحات:
Operation
float
Body
flange, threaded, stainless steel
Associated function
balancing
Other characteristics
full-flow
DN
Max.: 250 mm(9.843 in)Min.: 50 mm(1.969 in)
Pressure
10 bar(145 psi)
Temperature
150 °C(302 °F)
