نام محصول:
دریچه سولنوئید 2 طرفه
نام انگلیسی:
2-way solenoid valve NIV
برند:
Clippard
مشخصات:

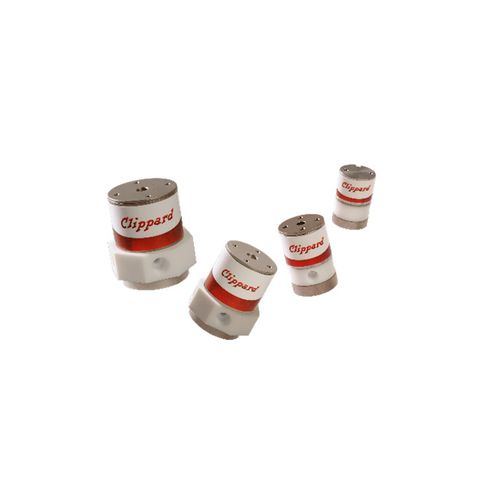

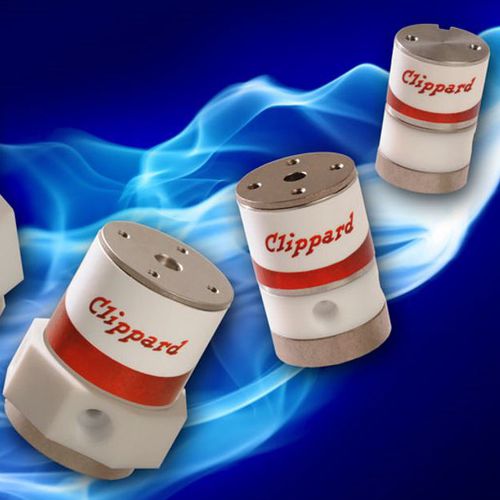

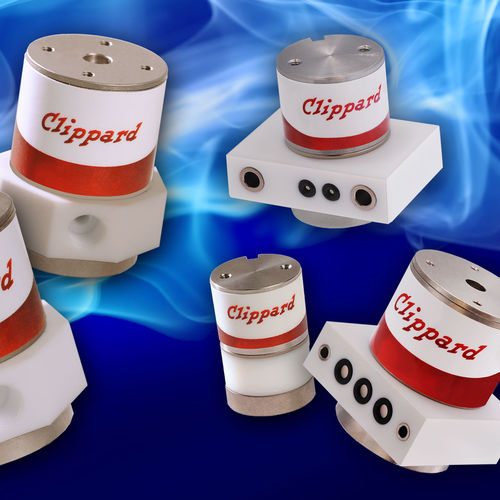

The Clippard NIV Series Media Isolation Valve is a solenoid-operated device that uses a flexible diaphragm to isolate the actuation mechanism from the fluid path. Media isolation valves are commonly used for a wide variety of applications, including those that require precise, repeatable dispensing of media for analytical instrumentation.
All wetted areas of the valve are PTFE, making this series ideal for use with corrosive media. A unique feature of the NIV Series is the one-piece valve stem that functions as a sealing membrane while also supporting and centralizing the poppet in the seating area. This multifunctional poppet/diaphragm/stem results in a simplifi ed design with fewer parts (only two for the 2-Way and three for the 3-Way), longer life and zero dead volume. Choose from four orifice sizes available as 2-Way Normally-Closed, 2-Way Normally-Open, or 3-Way Selector/Diverter.
• Low power consumption
• Compact, lightweight design
• Bidirectional
• Zero dead volume
• All wetted areas PTFE
• Ideal for use with corrosive media
• High cycle life
• Fast response time
• CE, RoHS Compliant
• Proudly made in the U.S.A.
• ISO 9001:2008
For more information about these valves or any of Clippard’s 5,000 other pneumatic products,
call +32.10.45.21.34 or visit www.clippard.com.
Clippard Europe S.A.
Belgium
www.clippard.com
توضیحات:
Ports/positions
2-way, 3-way
Function
NC, NO
Medium
for water, for gas
Body
compact, PTFE
Other characteristics
chemically inert, for corrosive environments, diaphragm, RoHS
Voltage
12 V, 24 V
Temperature
Min.: 0 °C(32 °F)Max.: 70 °C(158 °F)
Pressure
Min.: 0 bar(0 psi)Max.: 2 bar(29 psi)
