نام محصول:
دریچه سولنوئید 2 طرفه
نام انگلیسی:

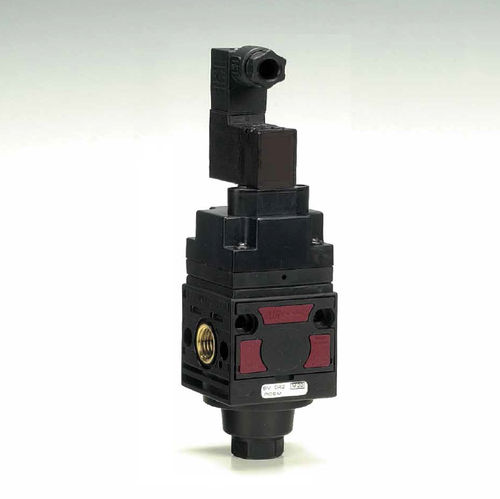

2-way solenoid valve 42 series
برند:
Aircomp by Stampotecnica
مشخصات:
Device used to shut off the air supply while relieving the downstream circuit by a remote electric control.
*Available with MICROSOL type or in compliance with CNOMO standards (to be ordered separately).
*Available with remote pneumatic control.
*It can be wall mounted using the relative holes.
*Discharge connection: G1/8”.
*Minimum pressure admitted: 3 Bar (0,3 MPa).
*Maximum working pressure: 10 Bar (1 MPa).
*Max. ambient temperature (at 10 bar) 50°C (122°F).
*Max. torque inserts G1/4” IN-OUT: 25 N·m.
*Reference flow rate (P=10 Bar – Δp=1 Bar): 1570 Nl/min.
*Weight: 0,189 Kg.
*Product complies with Directive 2002/95/CE (RoHS).
توضیحات:
Ports/positions
2-way
Function
NO
Medium
air
Other characteristics
RoHS
Temperature
Min.: 0 °C(32 °F)Max.: 50 °C(122 °F)
Pressure
Min.: 3 bar(43.5 psi)Max.: 10 bar(145 psi)
