نام محصول:

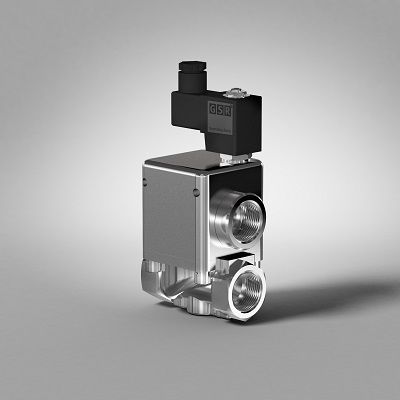

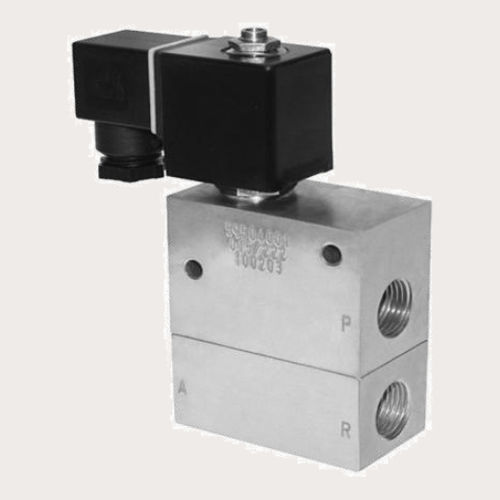

دریچه سولنوئید پیستون
نام انگلیسی:
Piston solenoid valve 74
برند:
GSR Ventiltechnik GmbH & Co. KG
مشخصات:
Description
2/2-way valve
Impulse
with differential pressure
Body
Brass, Stainless Steel
Pilot operated piston design valve. The mentioned minimum pressure difference between inlet and outlet is necessary for proper operation. In standard (NC) the valve closes with spring power.
TECHNICAL SPECIFICATIONS
Type of control: Pilot operated
Design: Piston design
Connection: Threaded G1/4 -G2
DIN ISO 228/1 (BSP)
Further connections like NPT on request
Installation: Preferable with actuator upright
Pressure: 2 -30 bar (see table on page 2)
Medium: Clean, neutral, gaseous and liquid media
max. viscosity: 22 mm²/s
Temperature range: Medium: -10 °C up to+80 °C
Ambient: -10 °C up to+50 °C
In consideration of the restrictions described on page 4
Body material: Brass 2.0402
Stainless steel 1.4571
Metallic inner parts: Brass and Stainless steel
Sealing: NBR, FKM, EPDM, PTFE
Supply voltage: AC~ 24V, 110V, 230VDC= 12V, 24V
Other supply voltages on request
Voltage tolerance-10% / +10%
Power consumption.032 = 11 Watt
.012 = 18 Watt
Protection class IP65 acc. toDIN 60529
Duty factor 100% ED-VDE 0580
Connection type: Plug
توضیحات:
Control
pilot-operated
Ports/positions
2-way
Function
NC
Medium
for water, for gas
Body
threaded, brass, stainless steel, IP65
Other characteristics
piston
DN
Max.: 2 inMin.: 0.25 in
Voltage
Max.: 230 VMin.: 12 V
Temperature
Max.: 80 °C(176 °F)Min.: -10 °C(14 °F)
Pressure
Max.: 30 bar(435.1 psi)Min.: 2 bar(29 psi)
