نام محصول:
دریچه سولنوئید با کمک سروو
نام انگلیسی:

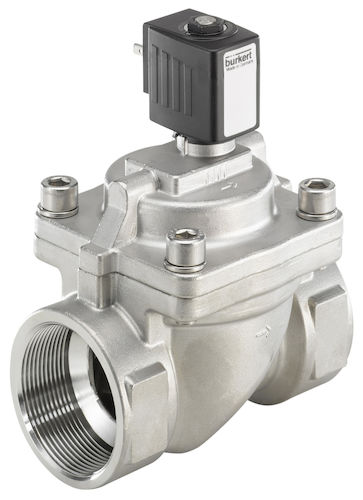

Servo-assisted solenoid valve 6281
برند:
BÜRKERT FLUID CONTROL SYSTEMS
مشخصات:
The 6281 valve is a servo-assisted solenoid valve of the S.EV series. A minimum differential pressure is always required for the function of the valve. Various diaphragm material combinations and methods of operation are available depending on the application. The standard brass housing satisfies all European drinking water requirements. Dezincification-resistant brass is available for other markets. The housing offering is rounded out by a stainless steel version. For reduced energy requirement, all coils can be delivered with electronic power reduction. The valve can be equipped with manual override for easy maintenance and commissioning. In combination with a plug in accordance with DIN EN 175301-803 Form A, the valves satisfy protection class IP65 – in combination with a stainless steel housing NEMA 4X.
Vibration-proof, central screwed coil system
Damped design for quiet closing
Service-friendly manual override
توضیحات:
Control
servo-assisted
Ports/positions
2-way
Function
NC, NO
Medium
for water, for gas, oil
Body
threaded, chemical-resistant, IP65, stainless steel, brass
Other characteristics
standard, explosion-proof, DIN, membrane
DN
Max.: 50 mm(1.969 in)Min.: 13 mm(0.512 in)
Voltage
24 V
Temperature
Max.: 190 °C(374 °F)Min.: -30 °C(-22 °F)
Pressure
Max.: 16 bar(232.1 psi)Min.: 0.2 bar(2.9 psi)
