نام محصول:
دریچه سولنوئید با کمک سروو

نام انگلیسی:

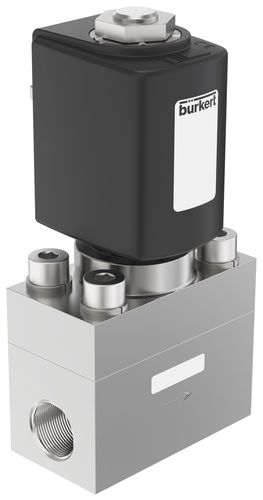

Servo-assisted solenoid valve 6240

برند:
BÜRKERT FLUID CONTROL SYSTEMS

مشخصات:
The 6240 valve is a servo-assisted piston valve. The stopper and plunger guiding tube are welded together to enhance pressure resistance and leak-tightness. Various seal material combinations are available depending on the application. The housing design and surface quality enable maximum flow rates. The coils are moulded with chemically resistant epoxy. An optional sliding ring bearings increases the life cycle with dry gases. To reduce power consumption in operation, coils with “Kick and Drop” (KD) electronics assembly (double coil technology) are available.

Servo-assisted and compact piston valve with diameter of up to DN 13

Vibration-resistant , screwed coil system

Increased leak-tightness with welded plunger guiding tube

Safe opening with hard-coupled piston system

Explosion proof versions

توضیحات:
Control
servo-assisted

Ports/positions
2-way

Function
NC, NO

Medium
for gas

Body
compact, threaded, small, chemical-resistant, IP65

Other characteristics
explosion-proof, DIN, piston

DN
6 mm, 12 mm(0.236 in, 0.472 in)
