نام محصول:
دریچه سولنوئید با کمک سروو
نام انگلیسی:

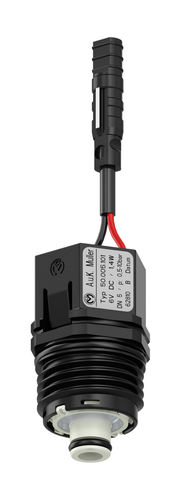

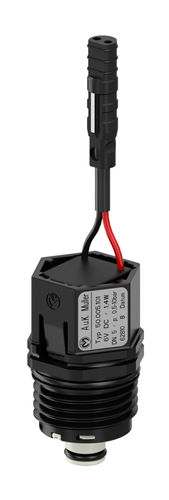

Servo-assisted solenoid valve 50.005.101 bi
برند:
A. u. K. Müller
مشخصات:
2/2-way solenoid cartridge servo controlled valve of DN 5 in bi stable version, to be used particularly in electronically controlled, battery driven sanitary fittings.
The power consumption is minimised by the use of impulse control (pwm) to increase long term performance, durability and battery life.
The design outline had been reduced so far that integration in appropriate components, while using a minimum amount of space, is given.
Positive properties are extended due to the simple “screw in” version, which supports easy assembly, service and tests by the customer.
The design of a separate valve seat by the customer is not to apply, as otherwise is needed, if a pilot valve will solely be used.
The rate of flow of the cartridge valve has been optimized in such a way, that the nominal diameter of DN 5 fulfils the standard requirements for sanitary tap ware.
Applications
Sanitary fittings
Automatic faucets
Industrial equipment
Characteristics
Pre-tested functional unit
Geeignet zur thermischen wie auch chemischen Desinfektion
Long term performance capability
Internal triple pollution protection
Optimized water hammer characteristic by low noise emission according to EN 60730
Easy to assemble and service
Standard connection
Cylindrical design
Low power consumption
Any fitting position
Suitable for spray- and jet water
High operating safety through the use of high quality materials and 100% final testing of the products
Hygiene benefit by 100% final testing with air
توضیحات:
Control
servo-assisted
Ports/positions
2-way
Medium
for water
Body
screw-in, compact, PA, IP65, stainless steel
Other characteristics
cartridge, pulse, bistable, PWM, for chemicals, control, irrigation
DN
5 mm(0.197 in)
Voltage
Min.: 4 VMax.: 7 V
Temperature
Min.: 5 °C(41 °F)Max.: 70 °C(158 °F)
Pressure
Min.: 0.5 bar(7.3 psi)Max.: 10 bar(145 psi)
