نام محصول:
دریچه سوزن
نام انگلیسی:
Needle valve VSRR L series
برند:
METAL WORK
مشخصات:

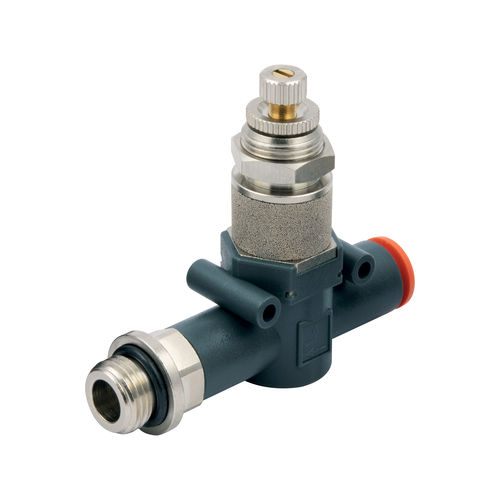

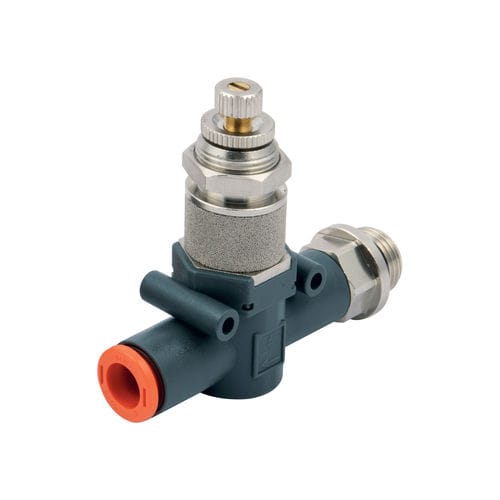

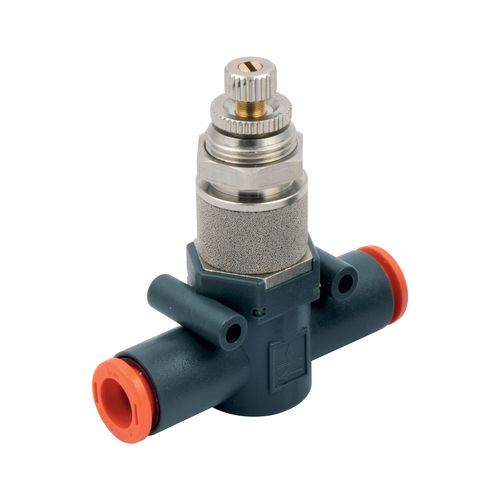

The VSRR L quick-exhaust valve with regulated exhaust belongs to the LINE ON LINE® family of products and can be linked in series or in parallel to all the other products. It comes in a version for pipe-pipe connection, which includes two push-in fittings, and a version for thread-pipe connection, which includes a nickel-plated brass taper thread and push-in fitting. The main feature of these valves is that the discharge flow can be adjusted via a pin regulator. This allows you to control the speed of the actuator connected to the valve, giving a higher speed than with an MRF regulator.
• Short description: : VSRR ø 4
• Quantity per package: : 0
• Minimum order quantity: : 0
• Unit of measure: : items
• Body material : Technopolymer
• Exhaust flow-rate at 6.3 bar (Nl/min) : 170
• Functional denomination : Quick exaust valve with micro regulator in line
• Inlet flow rate at 6.3 bar DP 1 bar (Nl/min) : 50
• Inlet pressure (bar) : 1÷10
• Max temperature (°C) : 60
• Min temperature (°C) : -20
• Product’s series : Series LINE ON LINE
• Push-in fitting for pipe (Ø) : 4
• Suggested tube (Type) : Rilsan PA11-Nylon 6-Polyamide 12-Polypropylene
• Thread type : Cylindrical
توضیحات:
Type
needle
Function
for control
Media
for compressed air
Body$
in-line
Material$
nickel-plated brass
Associated function
discharge, exhaust, quick-release exhaust
Other characteristics
push-in
DN
4 mm, 6 mm, 8 mm(0.157 in, 0.236 in, 0.315 in)
Pressure
Max.: 10 bar(145 psi)Min.: 1 bar(14.5 psi)
Temperature
Max.: 60 °C(140 °F)Min.: -20 °C(-4 °F)
Flow rate
Max.: 960 l/min(253.61 us gal/min)Min.: 50 l/min(13.21 us gal/min)
