نام محصول:
دریچه سوزن
نام انگلیسی:

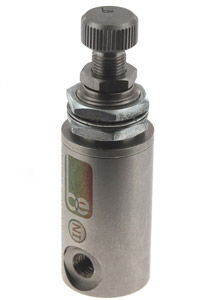

Needle valve RPV-1010-.-1-3.
برند:
Beswick Engineering Co, Inc.
مشخصات:
The RPV is used to protect a pneumatic actuator such as a chuck, press, or gripper from sudden bursts of high pressure. The internal needle valve restricts the initial movement of the actuator to a user defined speed, and then opens up upon sensing back pressure. This allows the user to limit the impact that a work piece experiences when it is clamped down upon without sacrificing the pressurization speed of an open, free flowing connection.
Approximate Weight: 57g in stainless steel (303 & 316). Weight will vary slightly, depending on configuration.

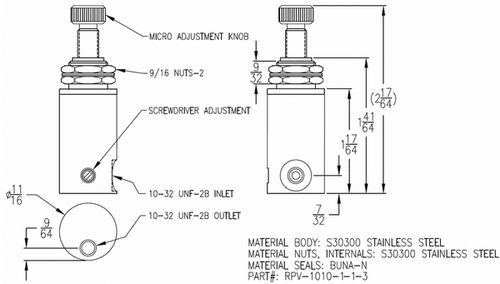

Porting: 10-32 female threaded inlet and outlet ports.
Features
Relieving valve
10-32 UNF female threaded ports
توضیحات:
Type
needle
Operation
pneumatic
Function
pressurisation
Body
threaded, female, stainless steel
Applications
for actuators
Other characteristics
corrosion-resistant, quick-connect
DN
0.07 in, 0.375 in
Pressure
Max.: 250 psiMin.: 0 psi
